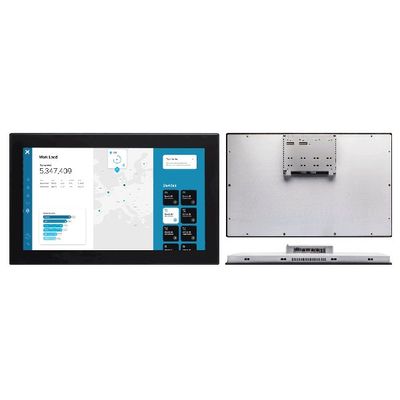

EXOR - Model eX721M -IoT Controller
The eX721 is an IoT controller with a large screen that is scratch, UV and chemical resistant, and has many important certifications that make it possible for applications on the factory floor and in harsh environments. A powerful 64-bit quad core CPU that ensures JMobile applications are running in their optimal environment for the highest performance. It offers ultra-high performance, high-resolution multitouch PCAP glass display, powerful integrated PLC with all major protocols, and optimised hardware and software for maximum application speed.
Most popular related searches
rechargeable lithium battery
lithium battery
electromagnetic compatibility
condenser protection
power performance
battery protection
battery replacement
eX700M products give a performance boost to the successful eX700 series and confirm the unique selling points and benefits of the eX700 series: multitouch display and robust glass front, 3 Ethernet ports and expandability with plug-in modules, full range of certifications for extreme working environments, maritime and industrial, ready for installation of CODESYS PLC runtime software with a full selection of network stacks for I/O.
eX700M feature a powerful 64-bit quad core CPU that ensures JMobile applications are running in their optimal environment for the highest performance.
The power of eX700M is the best way to exploit the new graphical and security features in JMobile 4.5, in addition to the outstanding communication features such as OPC UA Client/Server and MQTT.
eX700M is the ideal choice for the most demanding IIoT edge applications in factory, marine and building automation where powerful and performing HMI is needed for installation as close as possible to human operators.
- 21.5” TFT Projected capacitive touchscreen. True glass design.
- Multitouch operation
- 64-bit quad core CPU
- Operating Temperature -20°C to +60°C
- System and Project Rapid Boot-Up
- CODESYS V3 with Ethernet I/O Stacks
- Resistant to Scratches, UV and Chemicals
- Network Separation possibile via Up to 3 Ethernet
- Networks with different IP addresses
- Plug in Modules for System Expansion
System Resources
- Display - Colors ; 21,5“ TFT LED - 16M
- Resolution ; 1920x1080, full HD
- Brightness ; 300 cd/m2
- Dimming ; Yes
- Touchscreen ; True Glass Projected Capacitive, Multitouch
- CPU ; 64-bit RISC quad core - 1.6 GHz
- Operating System ; Linux
- Flash ; 8 GB
- RAM ; 2 GB
- FRAM ; 64 KB
- RT-Clock, RTCBack-up, Buzzer ; Yes
Interface
- Ethernet port ; 3 (port 0 - 10/100/1000, port 1 - 10/100, port 2 - 10/100)
- USB port ; 2 (Host V2.0, max. 500 mA)
- Serial port ; 1 (RS-232, RS-485, RS-422, software configurable). Max 3 serial ports using plug-in modules.
- SD card ; Yes
- Expansion ; 2 slot for plug in modules
Ratings
- Power supply ; 24 Vdc (10 to 32 Vdc)
- Current Consumption ; 1.7 A at 24 Vdc (max.)
- Input Protection ; Electronic
- Battery ; Rechargeable Lithium battery, not user-replaceable
Environment Conditions
- Operating Temperature ; -20° to +60 °C (vertical installation). Plug-in and USB devices may limit max temperature to +50 °C
- Storage Temperature ; -20°C to +70°C
- Operating / Storage Humidity ; 5-85% RH, non condensing
- Protection Class ; IP66 (front), IP20 (rear) - Type: 12, 4X
- Dimensions and Weights ;
- Faceplate LxH ; 552x347 mm (21,7x13,66“)
- Cutout AxB ; 541x336 mm
- Depth D+T ; 56+8.5 mm
- Weight ; 6.1 Kg
Approvals
- CE ; Electromagnetic Compatibility Directive 2014/30/EU (EMC)
- ATEX ; Zone 2/22: II 3 G Ex ec IIC T5…T4 Gc, II 3 D Ex tc IIIC T95°C Dc | -20°C ≤ Tamb ≤ +60°C or 0°C ≤ Tamb ≤ +50°C
- IECEx ; Zone 2/22: Ex ec IIC T5…T4 Gc, Ex tc IIIC T95°C Dc | -20°C ≤ Tamb ≤ +60°C or 0°C ≤ Tamb ≤ +50°C
- UL ; cULus: UL61010-1 / UL61010-2-201
- UL ; cULus: Class 1 Div 2
- DNV ; Yes
- RCM ; Yes
