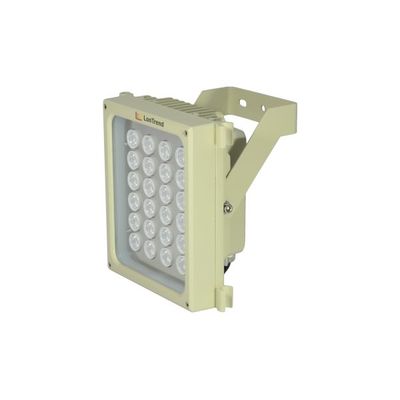

LonTrend - Model LTIA03 -IP66 LED Illuminator
FromLonTrend Corp.
LED illuminator with distance up to 450 m (optional).
Most popular related searches
- IP66, NEMA-4X enclosure rating
- Designed for indoor and outdoor applications
- Die-cast aluminum construction
- Illuminator with distance up to 65 m to 450 m (213 ft to 1476 ft) (optional)
- Input power: 12 V DC/24 V AC/universal AC 110 V to 250 V (available)
- 850 nm/740 nm/940 nm/White light optional
- Type : Indoor/Outdoor
- Protection Rating : IP66, NEMA-4X enclosure rating
- Material : Die-cast aluminum
- Finish : Ivory white polyester powder coat
- Input Power1 :
- 12 V DC (LTIA03-R65-1, LTIA03-R65-740-1, LTIA03-R65-940-1, LTIA03-W80-1)
- 24 V AC (LTIA03-R65-2, LTIA03-R65-740-2, LTIA03-R65-940-2, LTIA03-W80-2)
- Universal 100 V to 250 V AC, auto-sensing (LTIA03-R65-U, LTIA03-R65-740-U, LTIA03-R65-940-U, LTIA03-W80-U)
- Power Consumption : 54 W
- Dimensions (W × H × L) : 210 mm × 213 mm × 120 mm (8.27 in × 8.39 in × 4.72 in)
- Window : Tempered glasses
- Operating Ambient Temperature : -40 °C to 55 °C (-40 °F to 131 °F)
- Wavelength1 :
- 850 nm (LTIA03-R65-1, LTIA03-R65-2, LTIA03-R65-U)
- 740 nm (LTIA03-R65-740-1, LTIA03-R65-740-2, LTIA03-R65-740-U)
- 940 nm (LTIA03-R65-940-1, LTIA03-R65-940-2, LTIA03-R65-940-U)
- White light (LTIA03-W80-1, LTIA03-W80-2, LTIA03-W80-U)
- Illumination Distance1, 2 :
- up to 65 m (213 ft) (LTIA03-R65)
- up to 80 m (262 ft) (LTIA03-R80, LTIA03-W80)
- up to 95 m (312 ft) (LTIA03-R95)
- up to 120 m (394 ft) (LTIA03-R120, LTIA03-W120)
- up to 140 m (459 ft) (LTIA03-W140)
- up to 170 m (558 ft) (LTIA03-W170)
- up to 200 m (656 ft) (LTIA03-R200)
- up to 220 m (722 ft) (LTIA03-W220)
- up to 260 m (853 ft) (LTIA03-W260)
- up to 270 m (886 ft) (LTIA03-R270)
- 220 m (722 ft) to 130 m (427 ft) (LTIA032-R220)
- 380 m (1247 ft) to 90 m (295 ft) (LTIA032-W380)
- 400 m (1312 ft) to 220 m (722 ft) (LTIA033-R400)
- 450 m (1476 ft) to 100 m (328 ft) (LTIA033-W450)
- Beam Angle1 :
- 120° (LTIA03-R65, LTIA03-R80)
- 90° (LTIA03-R80, LTIA03-W120)
- 60° (LTIA03-R95, LTIA03-W140)
- 45° (LTIA03-R120, LTIA03-W170)
- 30° (LTIA03-R200, LTIA03-W220)
- 15° (LTIA03-R270, LTIA03-W260)
- 15° to 180° (LTIA032-W380)
- 15° to 230° (LTIA032-W380)
- 45° to 90° (LTIA032-W450)
- 30° to 90° (LTIA033-R400)
- Weight : 4.0 kg (8.8 lb)
- LEDs : 24 pieces
- LED Lifetime : 20,000 hours
- Light On/Off : On when illumination is lower than 4 lux
