IRISS - Model CAP-ENV-DC Series -The Toughest and Most Reliable Infrared and Ultrasound Window

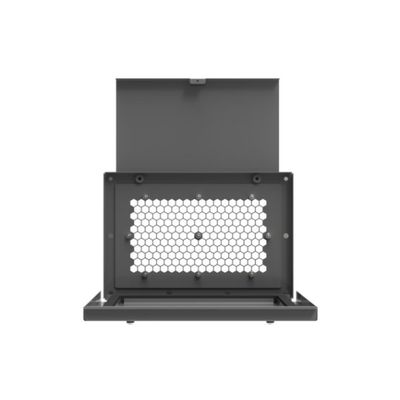

The CAP-ENV-DC features a reinforced, environmentally-sealed, slide-down door design, while also protecting the largest visuallyclear infrared (IR) transmissive viewing area available on the market today. The exclusive reinforced-polymer system allows any thermography camera to monitor completely undisturbed assets inside energized electrical equipment on the visual, UV and shortwave, midwave and longwave IR spectra. The larger rectangular viewing area provides an unparalleled field of view when compared to traditional, round IR windows. Constructed completely from stainless steel, the CAP-ENV-DC series is recommended to protect inspection windows in applications where harsh environmental conditions exist.
Equipment Protection
An additional layer of protection for both the inspection window and the equipment in environments with harsher conditions.
Arc Containment Tested
The CAP-ENV-DC Series was successfully tested to the IEC 62271-200 standard for arc containment on metal enclosed switchgear assemblies.
UL Listed
Having passed rigorous standards and testing, our inspection windows are UL Listed (E491496). This demonstrates our dedication to continued safety and security in the ever-changing world of electrical power and distribution, as well as the quality of products we offer.
