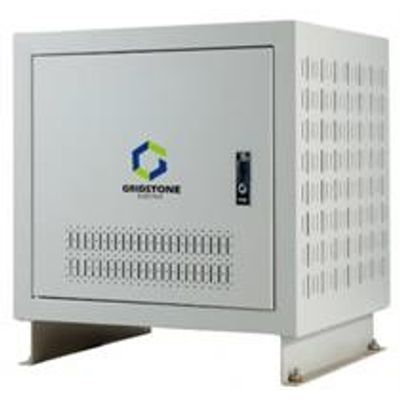

GridStone - Isolation Transformer
Galvanic isolation between the stabilizer and the main power supply. Change the voltage grade. Improve the balance of the phase voltage and provide a steady neutral point. Protection from voltage surge and cancel the triplen harmonics.
Most popular related searches
isolation transformer
transformer isolation
low voltage transformer
voltage optimization
galvanic isolation transformer
- Capacity 1KVA-3000KVA
- Voltage Grade <= AC1140V
- Input Voltage range Rated voltage ±10%
- Output Voltage Rated voltage ±3% when input voltage is at the rated voltage.
- Frequency 50Hz or 60Hz
- Dielectric Strength 3500V / 10mA / 60s
- Loading capability When the transformer is 100% loaded, it can take 3 times current in short time.
- Insulation ≥100MΩ ( DC 500V )
- Insulation Grade F
- Working Temperature —15°C--+45°C
- Humidity ＜95℅
- Temperature increase ＜100K
- Noise ＜55db
