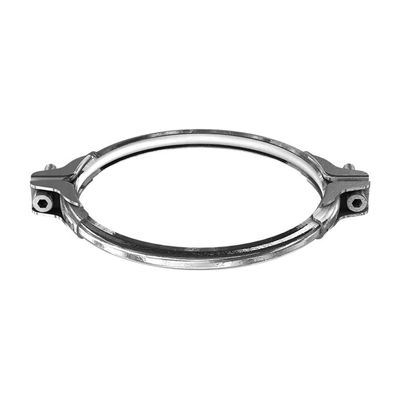

Jacob - Pull-Rings with Sealant
The elastic sealant in the pull-ring is EC 1935/2004 compliant and can be used in contact with food product in the temperature range between -40°C and +100°C. This pull-ring is used for bulk goods conveyed by gravity and ventilation systems with low differential pressures and without condensates. For higher demands concerning sealing properties and the resistance of the connection, pull-rings with U-shaped seals should be preferred.
Most popular related searches
- All versions electro-galvanised
- Pull-rings for 1 mm also suitable for connecting 1 mm to 1.5 mm or 2 mm thick pipe components
- Pull-rings for 2 mm also suitable for connecting 2 mm to 1.5 mm thick pipe components
- In larger diameters, pull-rings for 3 mm are used for all wall thicknesses
Diameters available
80, 100, 120, 140, 150, 175, 200, 224, 250, 280, 300, 315, 350, 400, 450, 500, 560, 630 mm
Materials available
Galvanised
Thickness available
1 mm, 2 mm & 3 mm
