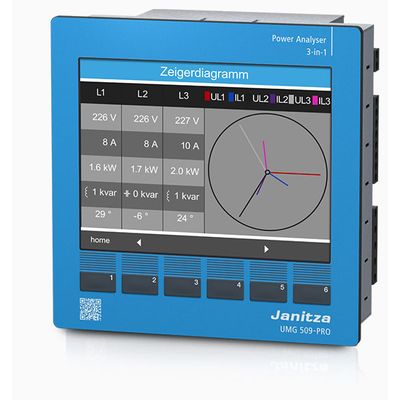

Janitza - Model UMG 509-PRO - Multifunction Power Analyzer with RCM
From Energy Management - Janitza
Power Quality Analyzer with Multi-Colour Display. Measurement of Harmonics up to the 63rd for Voltage, Current, Power & Reactive Power. 4 Voltage & 4 Current Inputs with a continuous sampling rate of 20 kHz.
Products Details
- Short-Term interruptions >20ms, Transients >50µs, Starting Currents >20ms, Unbalance V/I
- High Accuracy: Active Energy Class 0.2S Voltage 0.1%, Current 0.2%
- Modbus Master / Gateway & Modbus RS485
- FTP, SMTP, SNMP, NTP, PTP
- Jasic PLC Programming
- Memory 256 MB
- 2 RCM (Earth Leakage) Measurement Inputs
Digital I/O, (2 Input & 2 Output) & 1 Analog Temperature Input (PT100, PT1000, KTY)
Advantages
- Continuous monitoring of the power quality
- Energy management systems (ISO 50001)
- Master device with Ethernet Gateway for subordinate measurement points
- Visualizations of the energy supply in the LVDB
- Analysis of electrical disturbances in the event of power quality problems
- Cost center analysis
- Remote monitoring in the Commercial Premises
- Use in test fields (e.g. in universities)
