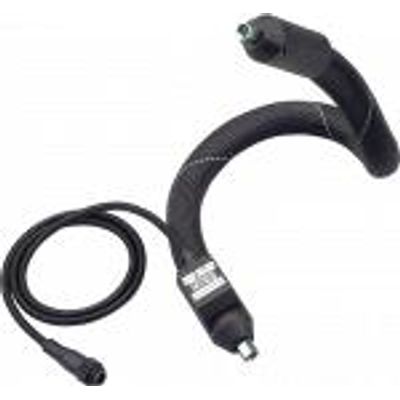

JCT - Model JH100/JH700/JH200/JH800 - Heated Hoses
From Heated Hoses
The JCT range of heated hoses (series JH100, JH700, JH200 and JH800) provide outstanding application performance. The heated hoses are custom made to the client’s exact requirements allowing JCT to provide bespoke solutions that have not been previously available. The hoses are produced to a very high quality standard and offer a long operational life. They have extremely high compressive strength and pressure ratings up to 600bar are available.
-
Most popular related searches
Specifications:
- Operating temperature: max. 100°C / 170°C / 200°C / 250°C
- Hose material: see page 22
- Fittings: see page 21
- Heater circuit: according DIN, moisture protected, with safety braid
- Temperature receptor: Fe-CuNi, type J
- Thermical insulation: heat stabilized, compact porous silicone foam -250°C elastomere foam -100°C
- External jacket: polyamide black, page 12
- Power / control cable: 1.5 metre, 7-pole plug, suitable for controller HT 43, page 24
- End cap: with tension relief and antikink protection in PA 6 or silicone
- Power supply: 230 V AC or optional 115 V AC (12 - 500 Volt special voltage)
- Test voltage: 2000 V
- Heater element and ground
- Power density: Watts / metre see page 15
- Tolerance limits:
- Filament power: +5% / -10%
- Outside diameter: ±10%
- Length: ±2%
- Temperature: ±10°C
