Gunther Spelsberg GmbH + Co. KG

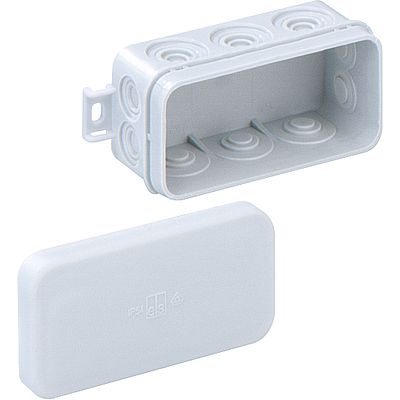

Gunther - Model Mini 25-L -Junction Box
Productnumber: 31090801 - Dimensions: 89 x 43 x 38 mm. Junction box, protection class IP55, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing insertion membranes, sealing range 8,2 - 12,5 mm, (2 rear, 10 side), external fixing lugs, for standard indoor installations grey, without terminals.
Most popular related searches
Electrical Characteristics
- Rated insulation voltage AC: 400 V
- Max. conductor cross section: 2,5 mm²
- Protection class: II
- Type of protection: IP55
- UL Type Rating: not specified
Colours
- Base unit colour: grey
- Cover colour: grey
Dimensions
- Width: 89 mm
- Length: 43 mm
- Height: 38 mm
- Weight: 0.026 kg
Material characteristics
- UV-resistant: no
- Halogen free: yes
- Flammability class according with UL94: HB
- Glow-wire flammability according to EN 60695-2-11: 650 °C
Max. number of terminals per cross section acc. to DIN VDE 0606-1
- max. amount of terminals at 1,5²: 5
- max. amount of terminals at 2,5²: 3
Max. number of wires per cross section acc. to DIN VDE 0606-1
- max. amount of wires at 1,5²: 15
- max. amount of wires at 2,5²: 9
mechanical properties
- for sealing range min: 8.2 mm
- for sealing range max: 12.5 mm
- Type of fastening: Wall/ceiling mounting
- Impact strength: IK07
- Sealable: no
- Fastening: external fixing lugs
Ambient conditions
- max. relative humidity 25°C: 95 %
- max. relative humidity 40°C: 50 %
- Min. ambient temperature: -25 °C
- Max. ambient temperature: 40 °C
- 24h ambient temperature: 35 °C
- Installation location: Indoors
Sales Information
- EAN: 4013902020041
- ETIM Class: EC002600
- Custom tariff number: 85389099
Material
- Base unit material: Polyethylene
- Cover material: Polypropylene
Certificates
- Test mark: VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))
