Tapollop - Model TPJB-2 - Junction Box for Silicon Base PV Module
From Junction Box

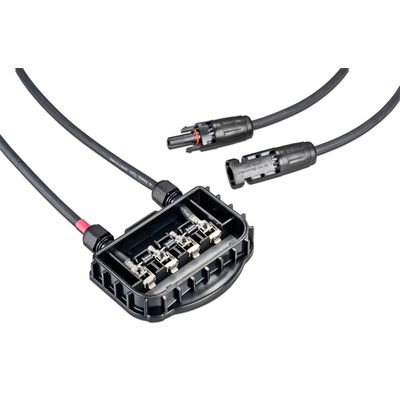

The plastic material characterized for anti-aging and anti-ultraviolet function. Qualified to be used under the harsh environment. Rail numbers and rated currents are optional according to module specification. Both terminal-crimping and terminal-soldering are available. Protection degree: IP65.
-
Most popular related searches
Technical Specifications
Specification Material
Box
- Cover:PPO
- Main body:PPO
- Gasket:TPV, Silicone
- Contact terminal:Tin plated copper alloy, stainless steel
- Gland nuts:PA66-GF
- Gland sealing:TPV, Silicone
- Mounting material:Silicone glue
- Connector (TPCB series)
- Main body:PPO
- Gland nuts:PA66-GF
- Gland sealing:TPV,Silicone
- Contact terminal:Tin plated copper alloy
Environmental/Reliability
Box
- Operating temp. range:-40°C to +85°C
- Upper limit temp.:+105°C
- Pollution degree:3
- Degree of protection:IP65/IP67
- Connector (TPCB series)
- Operating temp. range:-40°C to +85°C
- Upper limit temp.:+125°C
- Pollution degree:3
- Degree of protection:IP67/IP68
Electrical Specification
Box
- Rated voltage:1000V VDC/TÜV, 600V VDC/UL
- Rated current:Up to 10.5A, with potting 11A
- Application class:Class A
- Overvoltage category:III
- Certification:TÜV Rheinland DIN V VDE V 0126-5:2008/05, R50152301
- UL 3730, applied
- Connector (TPCB series)
- Rated voltage:1000V VDC/TÜV, 600V VDC/UL
- Rated current:Up to 25A @2.5 & 4.0 m?
- Application class:Class A
- Rated impulse voltage:8 kV
- Certification:TÜV Rheinland EN50521:2008/11, R50159695
- UL 6703, E344920
Others
- Model type of box:TPJB-2-X
- Model type of connector:TPCB series
- Number of diodes:3
- Number of terminals:4
- Ribbon contact method:spring contact, soldering
- Diode:Diotec SB 1240, SB1540, SBX2540
- Max. ribbon width:5mm
- Max. ribbon thickness:0.3mm
- Cable:(1) LEONI Studer AG (2) Baohing PV wire
- Cable assembly left:TPCB series-F (Anode”+”)
- Cable length left (L1):100cm±10cm, option
- Cable assembly right:TPCB series-M (Cathode”-”)
- Cable length left (L2):100cm±10cm, option
