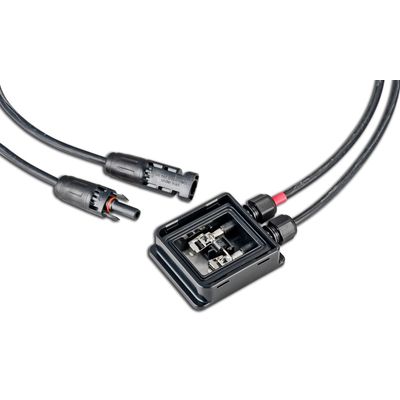

Tapollop - Model TPJB-4 -Junction Box for Thin Film Type PV Module
The plastic material characterized for anti-aging and anti-ultraviolet function. Qualified to be used under the harsh environment. Various mounting material, including silicon glues and double-sided adhesive types. Rated currents are optional according to module specification. Both terminal-crimping and terminal-soldering are available. Protection degree: IP67, without potting.
Most popular related searches
Specification Material
Box
- Cover:PPO
- Main body:PPO
- Gasket:Silicone,EPDM, Silicone
- Contact terminal:Tin plated copper alloy, stainless steel
- Gland nuts:PA66-GF
- Gland sealing:TPV,Silicone
- Mounting material:Silicone glue, double side adhesive type
- Connector (TPCB series)
- Main body:PPO
- Gland nuts:PA66-GF
- Gland sealing:TPV,Silicone
- Contact terminal:Tin plated copper alloy
Environmental/Reliability
Box
- Operating temp. range:-40°C to +85°C
- Upper limit temp.:+105°C
- Pollution degree:3
- Degree of protection:IP67
- Connector (TPCB series)
- Operating temp. range:-40°C to +85°C
- Upper limit temp.:+125°C
- Pollution degree:3
- Degree of protection:IP67/IP68
Electrical Specification
Box
- Rated voltage:1000V VDC/TÜV, 600V VDC/UL
- Rated current:Up to 5A with potting 6A
- Application class:Class A
- Overvoltage category:III
- Certification:TÜV Rheinland DIN V VDE V 0126-5:2008/05, R50159519
- UL 3730,E326769
- Connector (TPCB series)
- Rated voltage:1000V VDC/TÜV, 600V VDC/UL
- Rated current:Up to 25A @2.5 & 4.0 m?
- Application class:Class A
- Rated impulse voltage:8 kV
- Certification:TÜV Rheinland EN50521:2008/11, R50159695
- UL 6703,E344920
Others
- Model type of box:TPJB-4-X
- Model type of connector:TPCB series
- Number of diodes:1
- Number of terminals:2
- Ribbon contact method:spring contact, soldering
- Diode:Diotec P1000M, BY550-1000
- Max. ribbon width:5mm
- Max. ribbon thickness:0.3mm
- Cable:(1) LEONI Studer AG (2) TAPOLLOP PV Cable
- Cable assembly left:TPCB series-F (Anode”+”)
- Cable length left (L1):100cm±10cm, option
- Cable assembly right:TPCB series-M (Cathode”-”)
- Cable length left (L2):100cm±10cm, option
