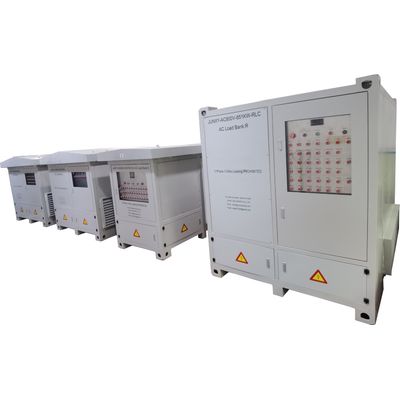

JUNXY - Model JUNXY RLC Load Banks - JUNXY Series RLC Load Banks
Load bank testing could help highlight a large range of faults on the power supply systems it test. The first goal achieved when testing with JUNXY AC/DC load bank is to ensure your power supply system is reliable or not by validating the power systems’ outputs to its technical specifications. The underlying question that JUNXY series AC/DC load bank could answer you is--“how is my power supply systems constant uptime(technical performance) ?” The load bank also tests that the power supply system is not faulty, no faults in construction and components reliable, that the aging of the power supply system is in line with expectations and that there are no pending breakdowns or early signs of wear and tear.Technical Specifications
Model
JUNXY-AC400V-40KW-RLC AC Load Bank
Load Element
Resistor, inductor and capacitor
Load Voltage
AC400V 3P4W & AC230V 1P2W
Frequency
50Hz
3 Phase
Load Power
R=40KW, L=40KVar, C=40KVar
Load Steps
Per Phase
Resistive load steps: 1KW, 2KW*2, 5KW, 10KW, 20KW
Inductive load steps: 1KVar, 2KVar*2, 5KVar, 10KVar, 20KVar
Capacitive load steps: 1KVar, 2KVar*2, 5KVar, 10KVar, 20KVar
(Fuse protection for RLC each load step)
Power Factor
Leading and lagging power factor 0-1.0 adjustable
Load Accuracy
Resistor/capacitor: ±5%, Inductor: ±5%
±2% for phase to phase balance
Digital Meter
voltage, current, active power, reactive power, apparent power, power factor, energy, frequency
Mains Voltage
240V 50Hz, single phase
2 Control Modes
1. Local control panel by push buttons
2. Remote control box by touch screen
Load Input
Wire Connections
Copper bus bar for wire connections
Insulation Class
F
Protection Level
Indoor use
Fan Noise
75dB
Cooling Mode
Force-air vertical cooling, by axial-flow fans.
Work Mode
Continuous work
Protections
Overheating/Buzzer alarm, Overheating/Over current, over voltage, over load protection, emergency stop button.
Fan lack of air protection. Earth fault protection
Dimension
750*1000*1816mm
Weight
Around 480kg
Ambient Temperature
-10℃～+50℃
Mobility
Four wheels
Humidity
≤95%
Altitude
≤2500 meters
