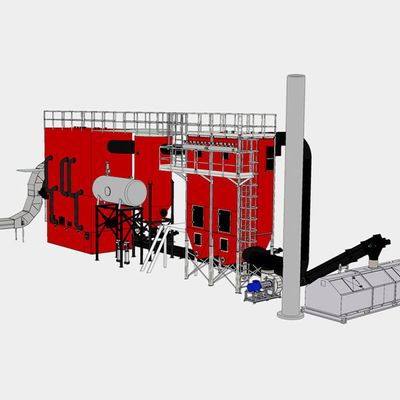

Justsen - Model Type JUE-DHF -High Pressure Steam Boiler
Capacity up to 16 t/h. Designed for versatility as the combustion system can be adapted for all types of biomass fuels. The boiler consists of a grate/radiation section with a horizontal steam drum. Vertical flue gas economizer is optional. The boiler is available in both hot water and steam versions.
The JUE-DHF boilers have been installed several in large scale industrial facilities around the world. The counter-current design of the grate and combustion chamber is ideal for wet wood chips with up to 55% moisture based on the total weight. As standard the boilers are equipped with compressed air cleaning for boiler tubes and ceramic tiles. To allow a wider range of fuel moisture, the boilers can be equipped with combustion air preheating increase the allowable fuel moisture and flue gas recirculation to cool down the combustion when the boilers are operating in the lower end of the fuel moisture spectrum. Ash riddling system to remove grate fall-through is optional.
- Capacity: 0.8 – 16.0 t/h
- Fuel: All types of biomass
- Pressure classes: 8.0 / 12.0 / 16.0 / 18.0 bar(g)
- Steam temperature: 140 – 212 °C
- Grate: Water-cooled – counter-current
- Radiation part: Horizontal flue gas pass
- Convection part: 2 horizontal flue gas tube passes
- Economizer: Optional: external 2-pass
