KanomaxAutomobile Steam Generator

SHARE

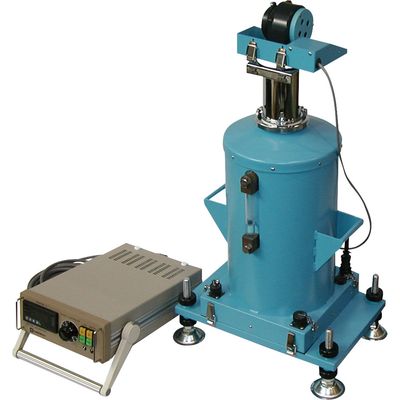

The Kanomax Steam Generator is specifically designed for automobile de-mister testing. This instrument fills the automobile cabin with steam to create a humid environment, increasing the fog that accumulates on the windshield. The de-mister can then be tested in accordance with JIS D 4502/4504-1994, ISO 3470-1989(E), EEC 661, and SAE J953 standards.

Most popular related searches
  • Generates up to 390g per hour
  • Conducts tests in accordance with JIS D 4502/4504-1994, ISO 3470-1989(E), EEC 661, and SAE J953 standards.
  • Steam volume generation up to 1 gallon
  • Automobile Testing
  • De-mister Testing
  • Steam Generation: 65 to 390 g/hour
  • Heat Loss: Less than 75W
  • Steam Volume: 1 gallon (3.785 litters)
  • Heater Capacity: Up to 500W at AC100V
  • Nozzle: Inner diameter of 15 mm x 100 mmL
  • Fan Airflow: 0.05 to 0.1 m3/min at 49 Pa
  • Standards:
    • JIS D 4502/4504-1994
    • ISO 3470-1989(E)
    • EEC 661
    • SAE J953
