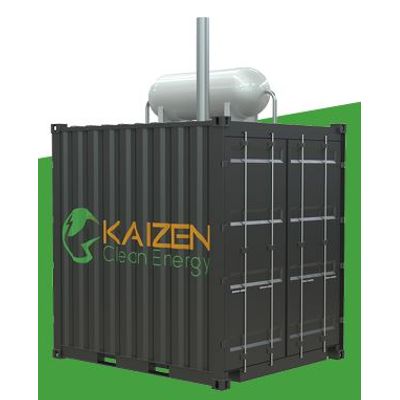

KCE - 150 KW Hydrogen Powered Microgrid
KCE`s mobile microgrid provides clients 150 kW`s of power with no local emissions or grid connection. On-site hydrogen production and fuel cells are used to produce electricity for EV charging and power generation. A 5k gallon atmospheric fuel tank provides 36 MWh of energy. FRONT VIEW (8` X 10`) The microgrid meets NFPA 2 requirements and can also support H2 fueling demand.
Most popular related searches
fuel cell
fuel cell module
fuel tank
hydrogen fuel cell
microgrid
battery module
electric vehicle charging
hydrogen production
power generation
hydrogen fuel
EQUIPMENT
- KCE H2 Reformer : 230 kg/day
- Low Pressure Buffer Tank : 120 Gallons
- Fuel Cell Module : 185 kW Capacity
- Battery Module : 48 to 96 kWh (Safe, Sustainable Nickel-Zinc)
- Inverters : 208- 480V 3-Phase Output
- 5K Gallon Liquid Fuel Tank : Holds 36 MWh of Energy
PERFORMANCE
- Hydrogen Quality : Fuel Cell Grade: ISO (14687:2019)
- Net Power 50 to 150 kW Consistent
- Max Power : -300 kWw/Batteries
- Power Required : Grid Independent or 20 kW
- Per kg H2 Fuel Consumption : 2.4 gallons methanol and 1.2 gallons of watei
- Local Emissions No NOx, SOx, or Particulates
SAMPLE LIST OF SAFETY AND COMPLIANCE
- General Guidelines : NFPA 2
- Hydrogen Reformer : ANSI / CSA FC5 (Similar to ISO 16110-1-2007)
- Process Piping : ASME B31.3, B31.12, and Section 8 VIII
- Buffer Tank : CGA Publication PS33
- Fuel Cell : IEC-62282-5-100 &-500
- H2 Venting N FPA 2, 853, 54, & GCA Publication G5.5
