Keenan - Model MK240DP - Dual Filter Fuel System
From Products
Comes standard with both water and clogged filter detection, vacuum gauge with a max pointer, drain valves and for the marine version a spill pan/heat shield.
-
Most popular related searches
Products Details

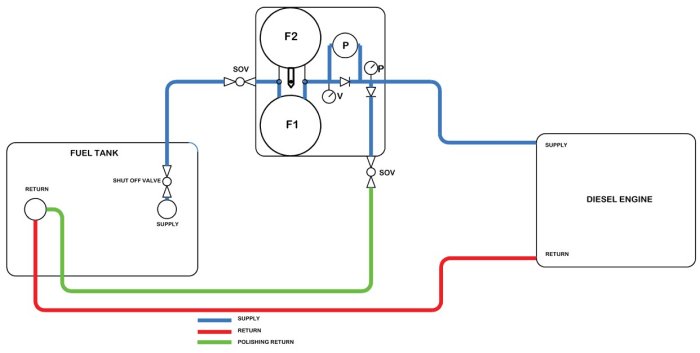

- This system can supply clean fuel to a single engine with one or multiple fuel tanks.
- Its unique fuel filter/water separator and manifold housing design greatly reduces the overall size, making it the smallest top loading dual filter system available.
- One filter can be online and the offline filter serviced and ready to be placed online when needed.
- The electrical interface box makes the connection from the filter to the remote control panel very simple and can also be connected to our optional GSM system for mobile communication and control.
- The optional electrical filter switch EFS, allows for manual or automatic filter switching when there is a warning.
Product Information
A Full Feature Double Filter Fuel Management System Perfect For Mid to Large Size Motors
Engine Reliability Starts With Clean Fuel!
Contaminated fuel is the most common cause of diesel engine shutdown! This issue is even more prevalent with motors that are not frequently used. The simple answer to this problem is to keep your complete fuel system clean, from tank to engine.
Our full feature MK240DP system is an advanced double filter model that offers everything you need to keep your fuel clean and motor running smoothly. Designed to stand-alone or be factory mounted to an optional panel, it does far more than just filter your fuel. It also keeps your entire fuel system clean through a preventative process called “fuel polishing,” which removes contaminants, water and impurities before they are ingested into the engine. It’s double filter functionality also allows you to switch filters on the fly without stopping the motors.
The MK240DP includes a remote warning panel to alert you about any potential problems, as well as an integrated fuel pumps for bleeding, priming and backup of the main engine fuel pump. It also uses commonly available Racor® filters, so you know you should be able to find a new one no matter where you are in the world.
System Features
- Dual filter design allows for filter switching and replacement without stopping motor(s).
- Fuel polishing ensure clean fuel delivery, no matter the source, for reduced maintenance costs.
- Remote warning panel alerts operator of problems before they get to the motor and can be installed in any location convenient for the operator. Advance warning also allows for use of finer micron filter.
- Optional EFS system allows for remote manual, or automatic, filter changes from warning panel.
- Separate fuel pump can be used as back-up if main motor pumps fail.
- System testing allows operator to verify fuel system integrity before operation or after maintenance.
- Optional pressure transducer monitors vacuum and data logging and settings.
- Optional GSM interface for remote monitoring.
- Uses widely available genuine Racor® elements.
- Machined from high quality aluminum & stainless.
- Optional NEMA 3X enclosure & NEA ports available
Specifications
- Height: 22.85” (58 cm)
- Width:
- 13.5” (34 cm) filter
- 16” (40.6 cm) mount
- panel 18.68” (47.4 cm)
- Depth: 8.48” (21.5 cm)
- Service Clearance:
- 10” (25.4 cm)
- 2” (5.1 cm) below
- Weight: 44 lbs (20kg)
- Inlet and out ports: #14 Orb 1-3/16 or 3/4” female NPT adapter (standard)
- Fuel: Diesel
- Filter Max Fuel Flow: 240 gph (908 L/h)
- Max Operating Pressure: 40 psi (2.1 bar)
- Normal Operating Vacuum: 0-6 in Hg (20 kPa)
- Vacuum Alarm: 8” + 2” in Hg (27 + 7 kPa)
- Optional Transducer: 4-20 ma
- Bowl Water Alarm Capacity: 10.3 ounces (.3 L)
- Water Removal: 99%
- Voltage: 12 VDC
- Current Draw - Pump on: 10 amps max
- Circuit Protection: 10 amp
- Pump: Marco
- Psi 14 psi (1 bar)
- Flow: 140 gph (908)
- Recommended: 2 micron 2010SM-OR
- Replacement: 10 micron 2010TM-OR
- elements -Racor®: 30 micron 2010PM-OR
Most Diesel Engine Failures Start in the Fuel Tank
Diesel Fuel is unstable by nature, solids begin to form and the sludge that accumulates can eventually clog your diesel filters, ruin your injectors causing your engine to stop. Every engine runs better with a system that cleans fuel, removes water, tests for leaks, and senses when it’s time for service. KEENAN FILTERS are the most efficient and most reliable fuel maintenance system you can install.
