Kenworth - Model T170 - T270 - T370 - Truck
From Vocational Trucks
Ready for a medium-duty truck that will likely outlive the body you put on it? Then take a close look at the Kenworth T170, T270 and T370 – trucks custom engineered and built with your long-term business goals in mind.
-
Most popular related searches
Details
No matter which model you select, you start with a versatile, rugged and reliable chassis capable of tackling the toughest jobs you’ve got. Then add advantages like contemporary aerodynamic styling, great visibility, excellent maneuverability, a driver-pleasing premium interior and quick single point daily maintenance checks.
These are trucks you can count on – day in, day out.

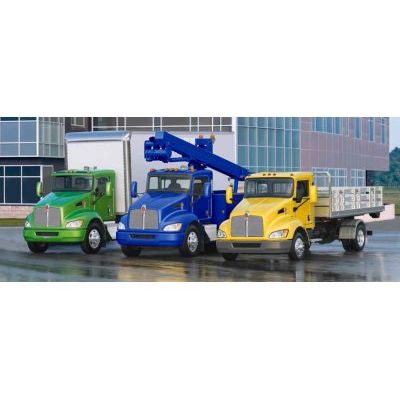

A straight truck in a 4 x 2 configuration with a gross vehicle weight rating up to 19,500 lbs, the Kenworth T170 is a robust Class 5 model designed to go the distance. The T270 is a true Class 6 vehicle, rated at 26,000 lbs GVW. Available as a straight truck, it can be configured for non-CDL operation to broaden your pool of drivers. The Class 7 T370, as a straight truck or tractor, offers a GVW range from 26,001 to 66,000 lbs.
Custom built from the ground up for your specific application, you can choose manual or automatic transmissions, air or hydraulic brakes and select from components by proven North American manufacturers.
Specifications
Power / Drivetrain
- PACCAR PX-7 Engine, 6.7 Liter, 200-325 HP, 520 – 750 lb-ft of Torque
- PACCAR PX-9 Engine, 8.9 Liter, 260-350 HP, 660 – 1,150 lb-ft of Torque
- CARB Emission Reduction Feature Available
Starting & Charging
- Multiplex Electrical System With Centralized Power Distribution Incorporating Plug-In Style Relays & Circuit Protection For Serviceability
- 12 Volt Lighting System With Circuit Protection
- Circuits Numbered & Color Coded
- Key Switch Start & Shutdown
- PACCAR 130 Amp Brushless Alternator
- PACCAR 12 Volt Starter
- Two PACCAR Dual Purpose Batteries
- Three PACCAR Dual Purpose Batteries
- Two or Three Optima Deep Cycle Batteries
- Horizontal Muffler/DPF/SCR and Tailpipe
Transmission Options
- Eaton Fuller FS5406A Synchronized 6-Speed
- Clutch - Eaton Fuller
- Eaton Fuller 6, 9 & 10 Speed Transmissions
- Eaton Ultrashift Plus 10-Speed Automated Manual
- Allison 5 & 6 Speed Automatic Transmissions
- PTO Options
Frame / Axle / Suspension / Brakes
- Frame - 10 5/8' Steel - 120,000 psi - Heat Treated
- Frame - 9 7/8” Steel - 120,000 psi - Heat Treated
- Frame - 10 3/4” Steel - 132,000 psi - Heat Treated
- Heavy Duty Front Frame Reinforcement Brackets
- Front Axles - 10,000 lb.
- Front Axles - Meritor 12,000 to 20,000 lbs.
- Front Axles - Dana Spicer 8,000 to 20,000 lbs.
- Front Drive Axles - Fabco 10,000 to 16,000 lbs.
- Front Springs - Taperleaf w/Shocks, 10,000 lb.
- Front Springs - Taperleaf w/Shocks, 12,000, 13,200, 14,600, 16,000 , 18,000 and 20,000 lb.
- Rear Axle - 21,000 lb.
- Single Rear Axles - Meritor from 21,000 to 30,000 lb.
- Tandem Rear Axles - Meritor 40,000 and 46,000 lb.
- Tandem Rear Axles - Dana Spicer, 40,000 and 44,000 lb.
- Rear Suspension - Reyco, 20,000 lb.
- Single Rear Axle Suspensions - Kenworth, Reyco and Hendrickson with capacities from 20,000 to 31,000 lbs.
- Dual Rear Axle Suspensions - Kenworth, Reyco, Hendrickson and
Chalmers with capacities up to 46,000 lbs.
- Brakes - Air
- Brakes - Hydraulic
- ABS System - Bendix
- Hydraulic Brake Configurations with Meritor ABS
Wheels / Tires
- Wheels - Steel 22.5'
- Tires - Bridgestone 295/75R22.5 R250F
- Polished Aluminum Wheels
- 19.5' Tires and Wheels
Fuel Tanks
- Steel - Rectangular 45 Gallon
- 22' Round Aluminum - 56 to 120 Gallon Capacity
- 24.5” Round Aluminum - 56, 75, 90 and 100 Gallon Capacity Under Cab
- Polished Aluminum Tanks and Straps
- End of Frame Between the Rails Fuel Tank, 45 and 70 Gallon Capacity
Battery Boxes / Bumpers
- Steel Battery Box with Aluminum Step Cover
- Steel Aero-Style Painted Bumper
- Chrome Steel Aero-Style Bumper
- Narrow Battery Box Under Cab
- Toolbox
Cab / Hood / Interior
- Cab - Aluminum and Composite
- Hood - 4-Piece SMC - Sloped Aerodynamic Hood
- Standard Pinnacle Vinyl Headliner and Cab Back Panel
- Apex Cloth Headliner and Cab Back Panel
- Kenworth Air-Cushion Plus Intermediate Back Driver Seat
- Kenworth Intermediate Back Toolbox Plus Rider Seat
- 2-Person Bench Seat
- Power Door Locks
- Passenger-side Electric Window
- Rear Cab Corner Windows
- Trust Walnut Wood Dash Panels
- Workstation Between Seats
- Aerodynamic Roof Fairings
Special Equipment & Options
- Aerodynamic Heated Mirrors
- Back-up Alarm
- Daytime Running Lights
- Multi-function Engine Connector For Body Builder Interface
- Bodybuilder Harness to End of Frame
- Adjustable Telescoping Tilt Steering Column
- Remote Keyless Entry
- Nav+ HD
T170 SPECIFIC SPECIFICATIONS AND OPTIONS
Frame / Axle / Suspension / Brakes
- Frame - 9 7/8” Steel - 120,000 psi - Heat Treated
- Front Axles - Dana Spicer, 8,000 lb.
- Front Springs - Taperleaf w/Shocks, 8,000 lb.
- Rear Axle - Dana Spicer, 11,500 lb.
- Rear Suspension - Reyco, 13,500 lb.
- Brakes - Hydraulic
- ABS System - Meritor
Wheels / Tires
- Wheels - Steel 19.5”
- Optional Polished Aluminum 19.5˝
- Tires - Bridgestone 245/70R19.5”
Fuel Tanks
- Steel - Rectangular 45 Gallon
- Optional Dual 45 Gallon
Battery Boxes / Bumpers
- Steel Battery Box and ABS Cover
- Bumpers - Steel Aero-Style Painted Gray
