Kocchi - 1080P Vehicle AHD Cameras

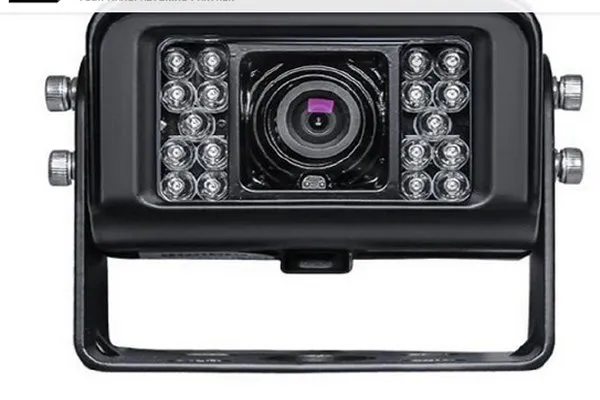

Delivering superb picture quality at 1080p resolution, the 122M exterior backup camera ensures clear views of the vehicle’s surroundings. Designed for durability, it features a robust build with waterproof housing and an IP69K rating, making it resilient in diverse environmental conditions. Boasting a 130-degree viewing angle, day/night functionality, and mirror imaging, the 122M camera is an optimal choice for rear-view applications.Kocchi’s© manufactures the best full HD car reverse cameras featuring 1080P high definition.
The 122M AHD backup camera is fully waterproof to IP69K standards, solid and reliable, shock resistant to 10G vibration, and optimized for extreme conditions with an optional heating feature.
- 1080p full high definition resolution gives you a clear, high definition image for perfect results
- For all vehicles: Universal fit, perfect for all kinds of vehicles: Cars, RVs, trucks, buses and more
- Night vision distance of 8-15m
- Rugged IP69K waterproof & Nitrogen-pressurized to prevent condensation of water within the optics
- Threaded collar connectors screw-lock to form a solid connection
- Wide viewing angle at 130 degree
- With parking guide lines that will make parking easier than ever
| Image Type | 1/2.8 Inch SONY |
| Video Output | AHD 1080P |
| Illumination | 0Lux (Built-in 18 IR LED for 15m night vision) |
| Waterproof Level | IP69K Rating |
| Shockproof | 10G |
| IR-CUT | Automatic switch, day and night mode |
| Power Supply | DC12V (from Reversing Monitor) |
| Weight Approx | 179g |
| Dimensions | 82(W) x 73(H) x 68(D) mm |
PET Expandable Sleeve / Power Video CablePower video cable for camera monitor systems to connect monitors and cameras, 4-pin female to 4 pin airline aviation male extension cable, 10 meters(15M/20M/30M), φ5
- Internal power supply ground lines are 24 # single wire, the audio cable is 26 # Single wire
- Internal video cable should be a single braid shield wire or RG-179-75 braid coaxial wire.
- Colors of all cables should be subject to the drawing paper.
- Ambient temperature: -20 ? ~ +80 ?
- Inner resistance of cable: positive/negative wire≤ 2 Ohm, audio≤3Ohm, video≤ 3 Ohm
Cab5 – 5-meter cable
Cab8 – 18-metre cable
Cab10 – 15-meter cable
Cab12 – 20-metre cable
Cab15 – 25-metre cable
Cab30 – 30-metre cable
