KONCAR - Static Excitation Systems for Medium Generators and Motors
From Energy - Excitation Systems

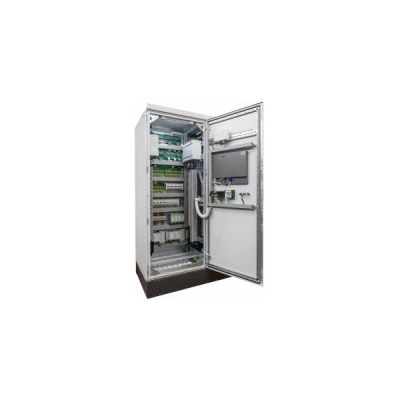

Static excitation system with KONreg digital voltage regulator was built around powerful, programmable processor unit, which allows the execution of regulation and control in real time, with fast response, high accuracy and reliability. The system is designed so that it can be completely customized to customer requirements, both for new facilities / projects and for reconstruction of the existing ones. The system consists of excitation transformer, digital voltage regulator in a single channel version (dual-channel version is available on request), thyristor converter (1 + 1 or n + 1 configuration-on request),de-excitation circuit (DC or AC), overvoltage protection, and field flashing (from DC or AC power source). Also, at the request of the customer, within our system we can supply equipment for the electrical braking.
Product Details
-
Generator voltage regulator
-
Limiters
⇒ Under excitation limiter
⇒ Maximum field current limiter
⇒ Maximum field current limiter -
Compensation
⇒ Frequency
⇒ Compensation per generator current -
Field current regulator
-
Automatic follow-up
-
Logical and sequential control
-
Communication
-
Monitoring and self-diagnosis
-
PSS – Power system stabilizer
-
Q regulator
-
Cos φ regulator
The range of thyristor converters which meets all kinds of generators:
-
Naturally cooled to 600A
-
Forced cooled to 1000A
