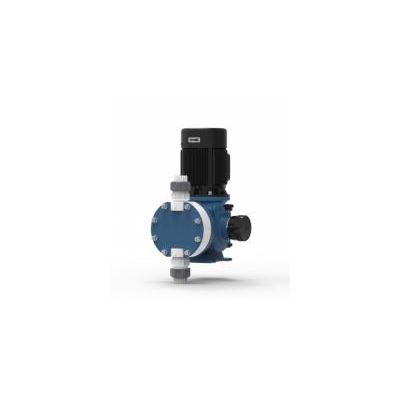

Kosmo - Model MM -Full Motion Electric Motor-Driven Pumps

Kosmo MM2  features the same distinctive specs of MM1 series, while the range provides higher dosing performance for the most demanding application. Constructed in hard wearing metal with a cast aluminium housing, Kosmo MM2 can handle the largest output with flow rates of up to 2,300 l/h, at pressures up to 10 bar and at a maximum working temperature of  40℃.

Suitable for a wide range of applications within water treatment but also outside of this arena, Kosmo can effectively be used in any of the following applications: potable water treatment: (injection of coagulants, flocculating agents, sodium hypochlorite, lime slurry, acid, bases, caustic soda, activated carbon, etc,); domestic or industrial waste water treatment, boiler feed water, cooling water; chemical treatment, electrolytic (electro-plating) treatments: addition of degreasing agents, cleaning agents, nickel electroplating and chemical nickel plating, copper plating, tinning etc.

• Flow rate 3-530 l/h
• Max pressure 12 bar
• Stroke rate 58/78/116/156 Strokes/minute
• Stroke length 2/4/6.4/7.4MM
• Diaphragm diameter 65/96/124/140MM
• Motor 0.25/0.37KW
• Material of pump head SS 316L /PVC /PVDF
• Max temperature 40℃

• Flow rate 80 - 2,300 l/h
• Max pressure 10 bar
• Stroke rate 43/86/131/175 Strokes/minute
• Stroke length 7/8/9/15 MM
• Diaphragm diameter 124/140/157/179 MM
• Motor 0.55/0.75/1.1KW
• Material of pump head SS 316L, PVC, PVDF
• Max temperature 40℃
