LAMBION - Pre-Chamber Smoke Tube Boiler
In the fire tube boiler, the flue gases are being conducted through the flue gas pipes, which form the heating surface. The water to be evaporated flows around the flue gas leading flue pipes. The arrangement of the heating surface is built directly into the water area of the boiler drum, below the evaporation surface.
- Capacity Range:500 to 18,000 kW
- Energy Carrier:Superheated Steam, Saturated Steam, Hot Water or Warm Water
- Pressure Range:up to 36 bar ( 842 psi)
- Steam Temperature:up to 450°C (970°F)
The flue pipes of the heating surface are combined to tube passes. Depending on the operating parameters, our design software determines the most economical number of such flue gas pipes, as well as the required length of pipe, as well as the pipe diameter. In order to achieve the highest possible efficiency of the flue gases, we determine whether the boiler drum is to be fitted with one, two or three flue gas pipe passes, which defines the product designations as one-, two- or three-pass boiler.

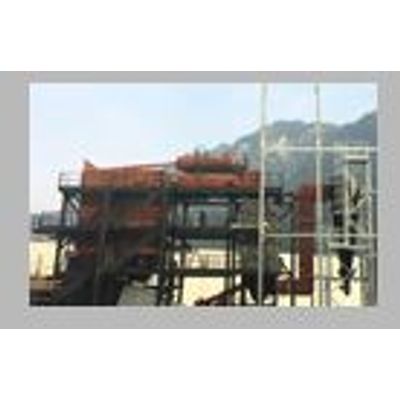

The diameter of steam drum, as well as the required pressure level relates to the drum wall thickness and in turn pre-determines the boiler constructor`s design possibilities. So, in order to maintain wall thicknesses offering manufacturing advantages, we define the power limits our pre-chamber smoke-tube boilers. Pre-chamber smoke type boiler with one pass convection heating surface - steam capacity 10 t/hr. at 32 bar ( 465 psi).
A proven system, where the special design of the pre-chamber meets the technical combustion related requirements of even the most difficult fuels.
