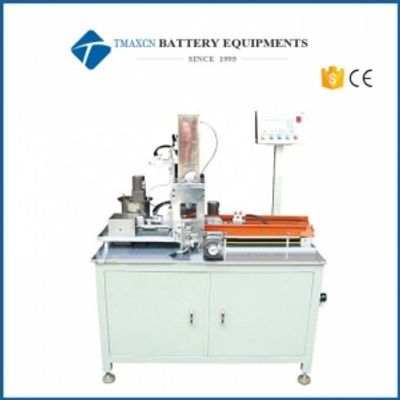

Tmax - Model Tmax-Grooving003 - Large Auto Cylindrical cell Grooving Machine for Batch Processing
It is an auto grooving machine for cylindrical battery cases. It provides a continues workflow for case batch loading - neck grooving - case unloading without dedicated labor.
Most popular related searches
Model Number:Tmax-Grooving003
Dimension(L*W*H):W1080mm*D660mm*H1200
Net Weight:1000lbs
Compliance:CE Certified
Warranty:Two Years Limited Warranty With Lifetime Technical Support
Payment:T/T, Credit Card, Paypal, LC, Western Union
Delivery Time:3 Days
- Efficient batch loading/unloading mechanism with case feeding conveyor
- Horizontally positioned grooving blade ensures the most stable and accurate grooving
- Micrometer assisted grooving depth & height adjustment
- Ability to compensate the axial deformation of a cylindrical casing
- User-friendly human-machine interface with PLC touch screen control
- Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment
