Growatt New Energy Co., Ltd.

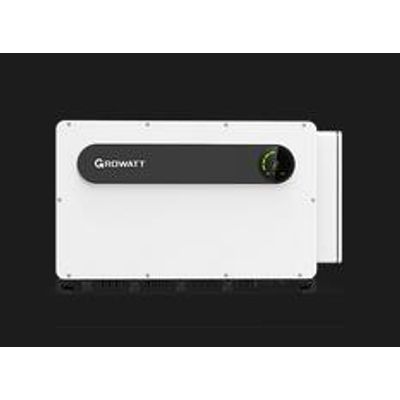

Growatt - Model MAX 185-253KTL3-X HV -Large Commercial & Utility Inverters
Suitable for urge scale utility power plants. The max series on-grid inverter was designed with upto 253kw big capacity quad-core inverter in the industry provides it fast processing capability to handle transient grid fault with the extraordinary 9/12/15 mpp trackers. Ensures high yields of the system.
Most popular related searches
utility power plant
grid-connected inverter
inverter
string current
utility power
grid inverter
string monitoring
REDUCE LCOE
- Max. efficiency up to 99%
- Higher unit capacity of 253kW
- 15 MPPTs brings extremely high DC/AC ratio up to 2.0
- 15A string current compatible with bifacial modules
LOWER BOS
- DC 1500V and AC 800V ready for parity plant new era Support DC side 2 in 1 connection, save DC cable cost PLC communication to save data cable cost Integreated anfi-PID. night SVG functions
SMARTER AND EASIER O&M
- Smart IA/ curve scan and diagnosis
- Fuse free design and intelligent string level monitoring
Easy for O&M by Online Smart Service (OSS) platform
