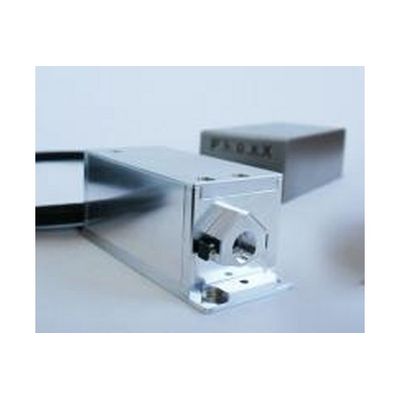

Omicron-Laserage - Model PhoxX Series - Laser Diode Modules for CW or Modulated Applications
Small and compact design. 36 different wavelengths between 375nm and 1550nm. Single-Mode optical output powers up to 300mW. High-Stability CW operation. High-Speed digital and/or analogue modulation. Electronic shutter function (laser inhibit) with >300kHz full ON/OFF capability. Automatic Aging Compensation (AAC) function. 0.7mm beam diameter option. Flexible, customer configurable input signaling. Industry standard footprint. Drivers for Metamorph, LabVIEW and Micromanager available.
Most popular related searches
- Beam diameter (other diameters on request)
- 1.0...1.5mm (1/e²), (depends on wavelength)
- 0.7mm (1/e²) +/- 0.1mm with option XX.DSO
- Beam quality M² : <1.15(1.05 typical)
- Astigmatism (corrected) : <0.2*ZR
- Beam ellipticity : <1.15:1
- Polarisation : >100:1 vertical
- Long term power stability
- <0.5% / 8h (in CW operation mode)
- < 2% / 8h (in modulation mode)
- RMS Noise
- 20Hz...10MHz : <0.2% (CW)
- 10MHz...500MHz : <0.2% (CW)
- Operation Modes
- Mode 1
- Mode 2
- Mode 3
- Mode 4
- CW operation
- Analogue modulation
- Digital modulation
- Mixed analogue & digital modulation
- Digital modulation
- Input signal type
- >180MHz
- TTL (200 Ohm) / 0...1V (50Ohm) / LV-PECL / PECL / LVDS (user configurable)
- Analogue modulation
- Input signal type
- >3MHz
- 0...1V (50Ohm) / 0...5V (1,2kOhm) (user configurable)
- Laser Enable (electronic shutter)
- Input signal type
- >300kHz (full ON/OFF)
- TTL (2kOhm)
- Rise- and falltime
- Digital: < 1.5ns
- Analogue:< 100ns
- Laser Enable: < 200ns
- Extinction ratio
- Digital: >250 : 1
- Analogue: >1000 : 1
- Laser Enable: infinite (full ON/OFF)
- Supply voltage : 5.00 VDC +/- 0.50 VDC
- Control interface : RS-232 and USB 2.0
- Dimensions laser head : 100 x 40 x 40mm (l x w x h)
- Dimensions laser controller : 120 x 62 x 40mm (l x w x h)
