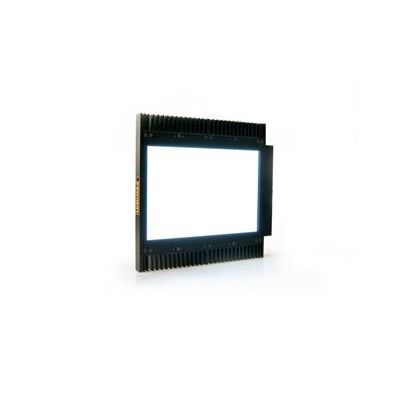

Lumimax - Model LG series -LED Area Lights
FromiiM AG
LightGuide-Technology for reflected and back light applications. Collimated (KOL) for maximum irradiance and directed, homogeneous backlight. Highly-diffuse (DL) for maximum homogeneity.
Most popular related searches
- Collimated backlight
- A directed, homogeneous area light source is positioned behind the object
- The contours of the object are lit for a secure control of the object`s outline as well as (open) inside contours
- The light rays from the lighting are significantly directed (almost telecentric) and achieve a precise image of object edges without disturbing overlays/reflections
- Area of application: dimensional accuracy checks, contour inspection, machined hole and thread inspection, inspection of transparent or semitransparent objects (foils, glas)
- Reflected light (partial bright field)
- Area lighting is used to direct light onto the test object at a slight angle
- Collimated lighting aims to provide wide, homogeneous and intense light over the entire image field, also from a larger distance
- Area of application: for mirrorlike, semitransparent and transparent test objects, such as foil, labels and glas
