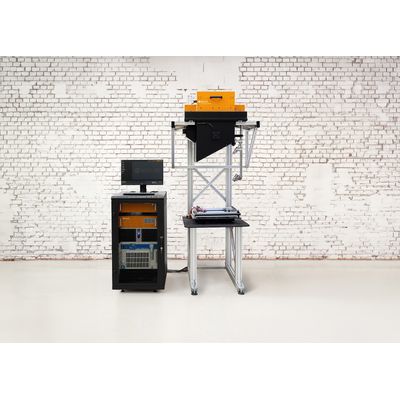

WAVELABS - Model SINUS-430 Advanced -LED Solar Simulator for Thin-Film and Perovskite R&D
The SINUS-430 Advanced LED Solar Simulator by WAVELABS is engineered for precision in thin-film and perovskite research. It provides an accurate simulation of the sun's spectrum, making it a reliable tool for solar cell efficiency measurement and testing of mini modules. With over 25 controllable LED channels, it offers customizable spectra, intensity, and illumination time for flexible R&D applications. The simulator's high spectral homogeneity and calibration lab-level accuracy ensure consistent results, meeting class A+A+A+ standards (IEC 60904-9). It supports extensive imaging options, such as RapidWAVE®-EQE, PL, EL, and IR, enabling comprehensive solar device analysis. Its modular design permits straightforward integration of additional software and hardware options, including infrared hot-spot detection and bifacial testing. Designed to support a large illumination area of up to 306 mm x 306 mm, the SINUS-430 Advanced is suitable for long-term illumination and complex solar module diagnostics.
The versatile, high precision LED solar simulator optimized for mini module testing in thin-film and perovskite R&D
With its highly accurate and precise simulation of the sun spectrum, the SINUS-430 ADVANCED is not only suited for solar cell efficiency measurement but also for characterization of mini modules based on thin-film and perovskite technology – just to name a few of the possible applications. The intelligent LED-based light source as well as the large number of additional imaging and characterization routines will turbocharge your research and development. LED’s present the new benchmark!
The LED Advantage
Customizable spectrum with single tunable LEDs offering endless R&D possibilities.
Covered for All Sample Sizes
Illumination and measuring of sample sizes up to 306 mm x 306 mm.
World-Class Light Engine
Exceeding class A+A+A+ (IEC 60904-9), calibration lab level accuracy with outstanding spectral homogeneity and wide range of exposure times.
Second LED light source
for bifacial testing (optional)
Fast All-in-One Characterization
Optional RapidWAVE®-EQE, PL, EL and IR imaging in a small footprint
Tandem-Ready
Customizable spectrum with single tunable LEDs offering endless R&D possibilities.
Full Spectral Control
Built-in spectrometer and intensity sensor with automated feedback loop ensure long-term stability of the defined spectrum.
Industry-Grade Hardware
Proven reliability 1000+ times in the field around the world
