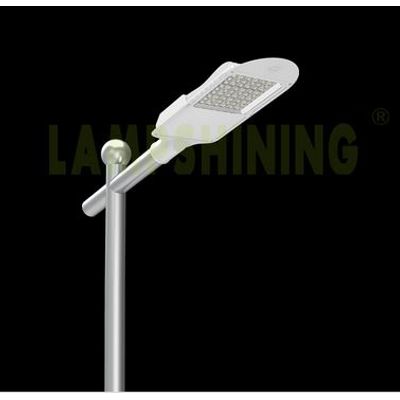

Lamp Shining - Model LSSSL-20W(XXK) -LED Street Light
Using high-quality Lumileds 3030 LED source, high efficiency 135-140LM / W. saturn series LED street lights use tempered glass + lens In order to prevent the lens turning into yellow after being exposed to sunlight for a period of time, which will lead to poor light transmission and even fogging may occur. Tempered glass + lens completely avoids this situation.
- Watt 20W
- Lumen 2800lm (140LM/W±3%)
- Chip Brand Lumileds 3030
- Input Volt 100-240Vac
- Driver Sosen Driver SS-30VA-56
- CCT 3000K, 4000K, 5000K, 5700K, 6000K
- Arm Dia 60mm 42mm
- Housing White Grey Black
- Size 491*190*82mm
- Beam angle Type 2M, Type 3M, Type 4M
- Certification TUV CE CB SAA RoHS LM79 LM80 TM21 IP65 IK08 Salt Spray test approved
heat dissipation
The fin can increase the heat dissipation area and obtain better heat dissipation effect. Birds are also prevented from staying on the lamps.
Easy to clean
The design of the Saturn LED street light makes it difficult for dust to accumulate. The dust will be blownaway when the wind blows.
Waterproof IP66
Use high-quality aluminium case. The waterproof performance of IP66. enables Saturn LED street lights to keep working normally in bad weather.
Pole installation holes
60mm/42mm optional pole mounting holes.
Level instrument
The level instrument accurates thetion of lain a minute.
Beam angle
Optional Type 2M, Type 3M, Type 4M beam angle
Application
Suitable for Main road, secondary road, branch road, highway, overpass, urban road, flyover, school, residential area, industrial area, park, city square, courtyard LED roadway lighting.
- 20W 1pc/57*29*20cm
- GW:3.0kg
- 20ft Container:1000pcs
