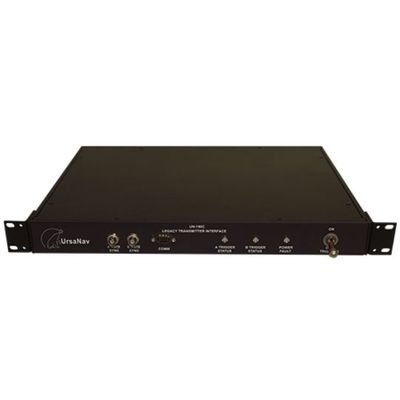

UrsaNav - Model UN-190C - Legacy Transmitter Interface

Dual Rate 5-Format Waveform Generator (MPT; PC Set; PC Reset; LI; 5 MHz). The UN-190C provides all the required waveforms to drive two PATCO’s or TCA’s of legacy SSX or NSSX transmitters in a single- or dual-rated mode of operation. Two Scope Sync signals (Rates A & B) are available for external triggering. Configuration is performed using a PC-based GUI connected via an RS-232 communications port.
