LenntechModel SAT-1 -Signal Alarm Tower

SHARE

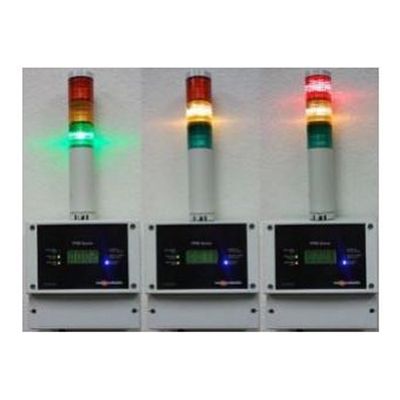

The SAT-1 is a tower light stack with an audible alarm that may be used to indicate various states of operation when connected to OS-4, OS-6, C-30ZX, EE-2, OEM-1, OEM-2, and UV-100. The indicator lights and audible alarm are controlled by relay contact closure. The SAT-1 has interchangeable stacking light modules that may be customized after purchase. The SAT-1 can be mounted on new OS-6 in our factory or ordered separately and installed by the user. Hardware is included for direct mount only.

Most popular related searches
  • Indicator Lights: Green, Amber, Red; High 360° visibility
  • Audible Alarm: None, Slow Pulse, Fast Pulse; 85 dB at 1 m
  • Voltage: 24V DC
  • Current Consumption o Lights: Green: 22 mA, Amber: 28 mA, Red: 28 mA o Buzzer: 40 mA o Power Supply: 350 mA
  • Mounting Location: Indoor use only
  • Size: 40 mm X 228 mm (1.57″ X 8.97″)
