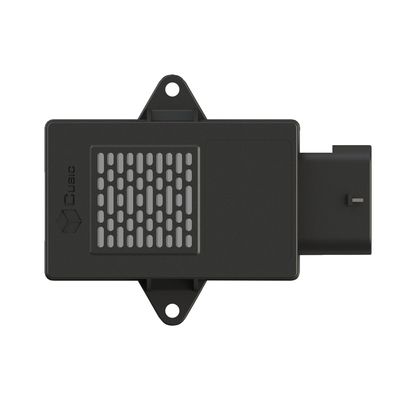

Cubic - Model ATRS-1012 - Li-battery Thermal Runaway Detection Integrated Sensor
Cubic ATRS-1012 sensor is a Li-battery thermal runaway detection sensor that can effectively monitor CO2 and H2 released from lithium-ion batteries, and generate an early warning signal to Battery Management System (BMS), to formulate safety alarm strategies. Cubic innovatively combines non-dispersive infrared (NDIR) and thermal conductivity (TC) technology to integrate a sensor solution that has remarkable characteristics such as fast response time, accurate measurement, long life time and low power consumption, could be widely used for Li-battery electrical vehicle and energy storge system.Most popular related searches
battery thermal runaway
battery management system
thermal runaway
lithium battery
lithium ion battery
battery management
thermal battery
battery system
- Automotive grade components
- Fast response time (<1s)
- Non-dispersive infrared (NDIR) CO2 sensor (fast response and high accuracy)
- Thermal conductivity H2 gas sensor (high reliability technology)
- Less cross interference with other gases
- Innovated combined sensing components for more reliable monitoring
- Operating Principle: NDIR (Non-dispersive Infrared); TC (Thermal Conductivity)
- Detection Category 1: CO2 (NDIR Technology)
- Detection Category 1: H2 (Thermal Conductivity Technology)
- Measurement of CO2: Measuring Range:0ppm~50,000ppm; Accuracy:±(0.1%vol + 10% of reading)
- Measurement of H2: Measuring Range:0~10%vol ( 0~4%vol accuracy guaranteed); Accuracy:H2 vol.% in air ≤4%: ±0.4vol.%, H2 vol.% in air＞4%: ±10%, @-40℃-85℃, 0%-95%RH
- Average Working Current: ≤70mA
- Working Pressure: 80~120kPa
- Resolution: 1ppm
- Response Time: <1s
- Start Up Time: <200ms
- Digital Output: CAN/PWM
- Working Condition: -40~85°C, 0%~99%RH (non-condensing)
- Storage Condition: -40~95°C, 0%~99%RH (non-condensing)
- Design Lifetime: >10 years (continually working)
