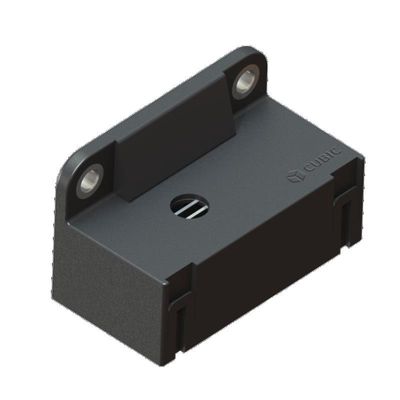

Cubic - Model ATRS-1032 - Li-battery Thermal Runaway Detection Integrated Sensor
Cubic ATRS-1032 is a lithium-ion battery thermal runaway monitoring sensor based on light scattering and MEMS thermal conductivity (TC) technologies. The ATRS-1032 is specifically designed to effectively monitor the concentration of particulate matter and H2 released during the early stages of thermal runaway while transmitting warning signals to the battery management system (BMS). ATRS-1032 features fast response time, less cross interference with other gases, low power consumption, and high reliability, widely used for applications of Li-battery electrical vehicle and energy storage system.Most popular related searches
battery thermal runaway
thermal runaway
battery management system
lithium battery
lithium ion battery
energy storage system
battery management
energy storage
thermal battery
battery energy storage system
- Fast response time (<1s)
- Less cross interference with other gases
- Low power consumption
- Innovated combined sensing components for more reliable monitoring
- Detection Category: H2, Particular Matter
- Operating Principle: H2:Thermal Conductivity; Particular Matter:Light Scattering
- Measurement Range: PM:0-10,000μg/m³;H2:0~4%vol
- Measurement Accuracy: PM:≤ ±15%@5000μg/m³, 25℃; H2: ± (10% of reading +0.1%vol)
- Response Time:<1s
- Average Working Current: Normal Working Mode:≤60mA; Low Power Mode:≤100μA
- Design Lifetime: >15 Years
- Working Condition: -40℃~+85℃; 0~95%RH (non-condensing)
- Storage Condition: -40℃~ +95℃; 0~95%RH (non-condensing)
- Power Supply: 9~32VDC (Rated voltage +12VDC/+24VDC)
- Communication: CAN
