LiftCam HD - Model 1103 - Professional Camera System
LiftCam HD is a professional camera system, designed for industrial use. With a transmitting range of up to 300 m, LiftCam HD was developed to perform without interference in the toughest of industrial conditions. The robust and waterproof HD camera is IP69K rated and it’s high-powered IR-system lights up approx. 10 meters in front of the camera. The 7” monitor has 1024 x 600 resolution and a 16:9 format, which shows the image exactly as it looks in reality.
- Auto-reverse camera switch
- 8G vibration
- Add up to four cameras
The system connects up to four cameras and has an auto-reverse camera switch. With the split-screen feature, you can view two cameras simultaneously. A paired camera and monitor will automatically reconnect whenever in range and powered on.
Place the camera at the base of your fork to load pallets with precision, on the side of the fork to see around high pallets, or at the back of the machine to reverse comfortably. The PowerBank battery gives you up to 30h of working time and lets you move the camera between machines in seconds. Both camera and battery attach magnetically. The camera is equipped with a built-in heater for anti-mist and anti-frost protection.
You can use a SD card (not included) to easily record and document what you see on the monitor. It will record the channel (or channels if the monitor is put in split-screen mode) that you see on the monitor.

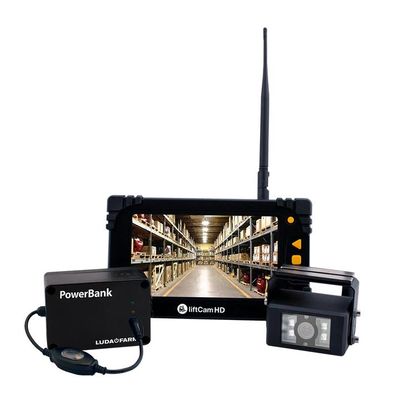

Included in the package:
- 1 x Monitor
- 1 x Camera
- 1 x PowerBank 25000
- 1 x 3 dBi antenna
- 1 x 5 dBi antenna
- 1 x Camera power cable
- 1 x Monitor direct power cable
- 1 x 12 V monitor adapter
- 1 x Suction bracket
- 1 x Sunshade for monitor
- 1 x Short camera bracket
- 1 x Tall camera bracket
LiftCam HD can only be purchased through our partner TVH.
Connect the monitor to 10-32 V and connect the camera to the included PowerBank (the camera can alternatively be powered directly with 10-32 V). The camera and monitor will automatically connect to one another when powered on. Both the camera and PowerBank attach magnetically, making it possible to place them wherever you want.
Camera
- Operating frequency: 2412-2467 MHz
- Sensor: 1/4" CMOS HM1246
- Resolution: 1280x720p
- Antenna output power: 18dBm
- Max range line-of-sight: Up to 300 m
- IP classification: IP69K
- Minimum illumination: 0.1 Lux
- Night vision: Up to 10 m
- Angle of view: 110°
- Built-in heater: Yes, anti-frost and anti-mist
- Power supply: 10 V-32 V
- IR LED illumination: Y<*«!
- Size: 12.5 cm x 10 cm x 9 cm
- Weight: 500 g
Monitor
- Operating frequency: 2412-2467 MHz
- Screen size: y.
- Resolution: 1024 x 600
- Max range line-of-sight: Up to 300 m
- Aspect ratio: 16:9
- Latency: 200 ms
- Operation temperature: -20°Cto + 70°C
- Brightness: 500 cd/m2
- Power supply: 10 V-32 V
- Power consumption: 8W
- Channels: 4
- Recording: Yes
- Loop functionality: Yes
- Split screen function: Yes
- Auto reverse function: Yes
