Ecophon Dot - Model LED - Lighting

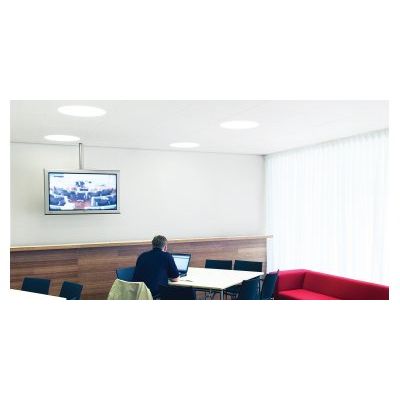

Ecophon Dot is a fully integrated recessed luminaire available for edge Dg, Ds, and E, developed for Ecophon ceilings with Akutex™ FT surface. A luminaire designed to achieve an exciting lighting effect, suitable for a number of room types. The newly updated modern LED lightsource is of high quality with high efficiency and long lifespan of over 50.000 hours (L90). The luminaire is specifically developed to fit Ecophon`s Connect range of profiles.
Ecophon Dot consists of a luminaire housing, a ballast and a matt opal satiné louvre integrated in an Ecophon Focus tile. Each luminaire weighs approximately 3,3 kg (excl. ballast and tile). The system is patented and has a design registration (Registered Community Design). The available ballasts are available in 3 different variants; standard (on/off), dimmable or with 1 hour emergency function (on/off). The dimmable ballast is ready for SwitchDIM, DALI, DSI and has a corridor function.
Accessibility
- The tiles are easily demountable. Minimum demounting depth according to installation diagrams.
Cleanability
- Daily dusting and vacuum cleaning. Weekly wet wiping.
Visual appearance
- Tile surface finish in White Frost, nearest NCS colour sample S 0500-N, 85% light reflectance (of which more than 99% is diffuse reflection). Retro reflection coefficient 63 mcd/(m²lx). Gloss < 1.
Installation
- Installed according to system range which include information regarding minimum overall depth of system. The luminaire housing rests on the T-profiles and the SwitchDIM/DALI and standard on/off ballasts are fastened to the grid or tile with velcro. The tile in which the louvre is integrated is installed as an ordinary ceiling tile. Once the luminaire, ballast and tile are in place a certified installation electrician must connect the wiring to sockets or to the next luminaire.
Connection
- The standard on/off electronic HF ballast delivered with 2,5 meters of cable 2,5 metres of cable 2x0,75 mm² and Euro plugg. The SwitchDIM/DALI and emergency electronic HF ballast delivered without cable. Emergency ballast with 1 hour battery pack.
Electrical approvals
- IP23, Class 1.
- Approvals Dot/Square/Line LED
Electrical data
- 220-240 V, 50-60 Hz, power factor cos φ>0,98. Electronic HF ballast or electronic HF dim ballast for digital regulation. Light source: 2 led modules of 37W total. Also available as emergency light, with a battery pack for one hour.
Lighting performance
- System effect: 40,7 W
- Light source: LED 37 W
- Luminous flux: 2740 lm
- Light efficiency: 67 lm/W
- Colour temperature: 4000K
- Color rendering index: > 80 Ra
- Colour tolerance: 3 MacAdam SDCM
- Light output ratio (LOR): 100%
- Light distribution up/down: 0/100
- Expected lifespan: L90 >50000 h
- Expected lifespan: L70 >100000 h
