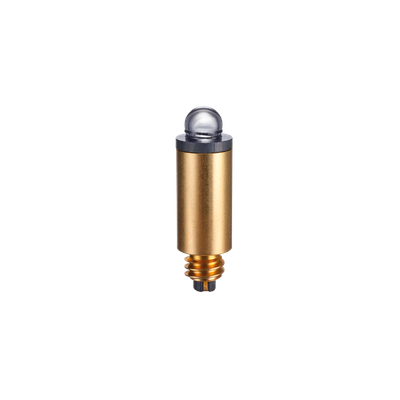

2E mechatronic - Model UNC-LED - Lighting Element for Medical Use

SHARE

The UNC-LED lighting element is designed for specialized applications, particularly within the medical field such as laryngoscopes. Featuring a standardized UNC thread, this LED element is constructed from a combination of a plastic body and a brass sleeve, ensuring an efficient installation into designated devices. Operating within a voltage range of 3-5 volts and a current consumption of approximately 80 mA, the device provides sustained performance with a battery life of up to 20 hours. By incorporating a constant current source, the LED maintains consistent brightness despite fluctuations in battery voltage, an advantageous trait for surgical applications. The device has a relatively low power dissipation of 0.2 watts, supports custom light temperature settings, and boasts a lifespan exceeding 10,000 hours. Leveraging Mechatronic Integrated Devices (MID) technology, it replaces traditional halogen lamps, offering size reduction and less heat output.

Most popular related searches
LED lighting
lighting system
waste heat
energy consumption
LED lighting system

With a constant current source for consistent illumination and a standardized UNC thread, our UNC LED lighting elements can be used in laryngoscopes, for example.

UNC-LED - the versatile lighting solution



The abbreviation UNC stands for Unified Coarse Thread, which corresponds to a standardized thread. 2E develops and produces LED elements for a wide variety of applications based on MID (Mechatronic Integrated Devices) technology, which can directly replace existing solutions such as halogen lamps.



Structure and application of the UNC-LED



The basic design is no different from a standard MID-LED element. The special feature is the metal sleeve into which the light element is installed. This has a UNC thread at the bottom, allowing it to be quickly screwed into suitable devices. Such lights are used, for example, in medical technology for laryngoscopes. In general, LED technology also allows for a smaller component size compared to halogen lamps, as significantly less current flows and thus less waste heat is generated.



Advantages of our lighting solutions

By replacing old bulbs with the same power supply, you not only reduce energy consumption but also significantly increase their lifespan. Furthermore, when using LEDs, you can choose the light color as needed. Our MID-LED is equipped with a constant current source. This ensures consistent brightness even as the battery voltage decreases.
  • Base variant : UNC thread #8-32
  • Materials : Plastic body and brass sleeve
  • Nominal voltage :  3 – 5V
  • Power consumption : approx. 80 mA
  • Battery life : up to 20 hours
  • Light temperature : customer-specific
  • Waste heat : 0.2 W
  • Lifespan : > 10,000 hours
