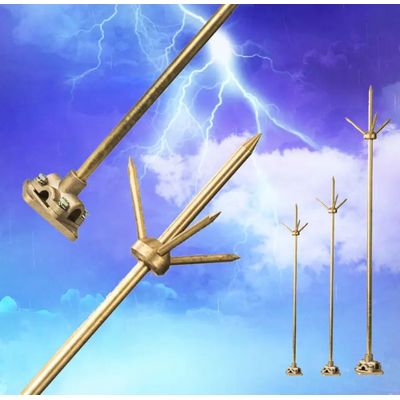

Lightning Conductor Rod Protection System

Item: Lightning Rod
Material: Pure Copper or Copper Coated Stainless Steel
Length: 0.5M/0.75M or As Your Request
Diameter: 12mm; 13mm; 13.5mm; 14mm; 15mm
Corrsponding protection radius: 2.14h
The hx height from ground: 2.14(h-hx)
Current gradient: less than 5KA
Average discharge current: less than 7KA
Grounding resistance: less than 10 ohm
Resistible wind speed: over 50m/s

Lightning Rod is used for protecting the buildings to avoid lightning strike. Lightning rod grounding plays an important part of the air termination network of a lightning protection system.We are professional lightning rod manufacturer. Building Lightning Rod,alternate named lightning protection devices,used for protecting the building when raining and lightning .The lightning rod installed on the building and transfer the electric to earthing metal to protect the building. Our SLE lightning rod comply with GB standard. Customized lightning rod available
1. Winding:There is a large protection area without winding. For example, when the winding rate less than 0.001%, (Apparently at such circumstance, the object protected has little opportunity to be winded.) and the protection up to 55 ° angle, compared to the traditional real lightning rod, controllable discharging lighting rod almost has no opportunity to be winded. 2. Scope of protection: When the protected object attacked by around 0.1%, (currently a point of orderunder the allowable value), controllable discharging lighting rod up to 66.4 ° angle, but traditional lightningrod is much more smaller than that. (Take the traditional lightning rod is more economical at strong intensive thunder area, while there still has opportunity that be struck by lighting). 3. Efficiency and application prospects: Controllable lightning rod is a widely used protection devicewith wide application prospects, with a high using value.
