GEM - Model Opal -Line Drainage Venturi Orifice Steam Trap
The GEM Trap is a low maintenance steam trap with no moving parts; it will not wear and is performance guaranteed* on saturated steam for 10 years. The unique venturi orifice technology utilises the expansion of the flash steam created by the pressure differential across the trap to control the flow of condensate. Operating over variable loads, the GEM Trap will suit all industrial applications. The single piece bodies are manufactured from wear and corrosion resistant grades of stainless steel. The GEM Trap is the most energy efficient steam trap on the market and is supplied with a full sizing and commissioning service.

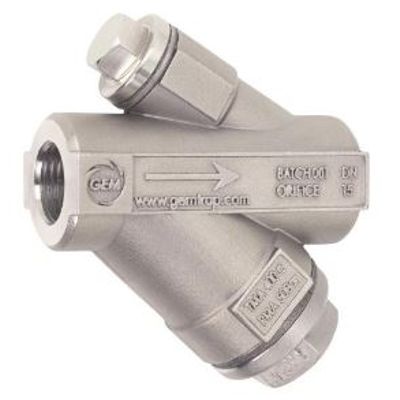

The Opal GEM Trap
- Same face to face dimension as mechanical traps
- Quick and easy to install
- Fully maintainable in-line
- Easy access to both strainer basket and orifice chamber Opal Traps contain GEM‘s inverted cone technology and a robust reinforced mesh strainer basket with large surface area to further protect the orifice from debris.
- Suitable Applications
- Low condensate duty applications
- Line drainage / trace heating
Ancillary Parts
- Insulation Jacket
- Optional drainage valve
Operating Parameters
- TMA 400C (750F)
- PMA 50 Bar (730psi) - Threaded
- PMA 100 Bar (1450psi) – Socket Weld
- PMA 100 Bar (1450psi) – Flanged†
- † Flanged Opal rating is limited by the specification of the flange selected
Available Spares
- Quality SS reinforced graphite gaskets
- Robust SS reinforced strainer basket
Key GEM Trap Benefits
Quality, Efficiency, Reliability and Service
- 10 Year performance guarantee*
- No moving parts to wear or fail
- No inserts - no leak path
- No ongoing trap surveys
- Minimal annual maintenance
- Does not contribute to waterhammer
- No pressurisation of condensate return system
- Inherently more efficient than mechanical traps > Typical payback < 2 years
- Permanent energy savings
- Each traps supplied with full sizing and commissioning service
