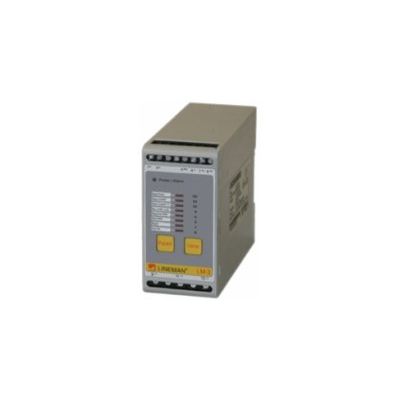

Lineman - Model LM-3 -Power Monitors
FromWarco, Inc.
The LINEMAN LM-3 power monitor is a single-function unit, intended for applications that demand safeguard against a specific operational hazard. Ideal for protection of centrifugal pumps against dry-running, the LM-3 is a cost-effective monitoring solution for machine builders and OEMs. For more advanced multi function load monitoring, see the LM-5, LM-6 and LM-7.
Most popular related searches
- Lightweight, small footprint design easily fits into most any electrical power cabinet.
- Mounts onto a standard 35mm DIN rail (DIN 46277).
- Easy installation and set up within minutes - no sensors to install. Alarm sets at the push of one key.
- Digital display provides clear readout at all times.
- Provides consistent sensitivity across the complete load range of the pump motor.
- Single trip switch can be set to sound an alarm and stop the pump automatically in event of either over- or under-load condition
- Operates on 50 or 60Hz AC.
- CE, cUL and UL approved (up to 600 V).
- Encapsulation class/Fitting: IP20/35 mm DIN-rail 46277
- Power consumption/Fuses: Max 3W/max 10A
- Voltage: 1x100-240 and 3x100-600 3x600-690 VAC
- Frequency 50 or 60Hz
- Relay output 5A/240VAC Resistive, 1.5A/240VAC Pilot duty/AC12
- Current input: Up to 50A with transformer CT010, CT025, CT050
- Digital input: External reset, Max 240VAC or 48VDC, High: >24VAC/DC, Low: >VAC/DC
- Approved: CE (up to 690VAC) and cUL (up to 600VAC)
