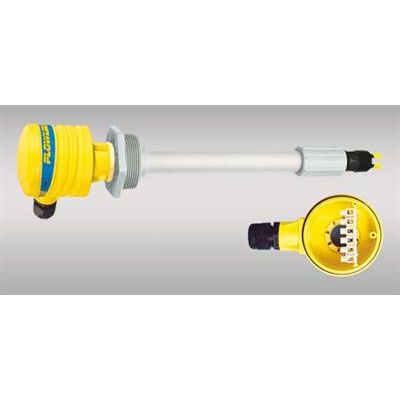

Flowline Switch-Pak™ - Model AX1X - Liquid Level Detection Package with Junction Box
FromFlowline Inc.
The intrinsically safe or general purpose level switch package provides high or low liquid level detection with one relay or reed switch output, and a compact junction box for wiring termination. Available in three level sensor technologies, choose the sensor type based upon your application media and classification. This PP or PVDF level switch package is selected for bulk storage, IBC or drum, and neutralization tank applications, connected to a PLC or relay controller.
Most popular related searches
- Rugged PP or PVDF construction for use with corrosive liquids
- Available in intrinsically safe and general purpose classifications
- 60VA relay or 15VA dry contact switches selectable NO or NC via wiring
- Offered in three sensing technologies for broad application coverage
- PP enclosure rated NEMA 4X with swivel base for conduit alignment
- Length: 6” to 10’ (15cm to 3m)
- Accuracy: ± 1mm in water
- Repeatability: ± 0.5mm in water
- Orientation: ± 20º vertical
- Switch points: 1 (factory set)
- Supply voltage: AV16: N/A, AU18: 12-36 VDC, AZ18: 12-30 VDC
- Consumption: AV16: N/A, AU18 / AZ18: 25 mA maximum
- Contact type: AV16: (1) SPDT reed, AU18 / AZ18: (1) SPST relay
- Contact rating: AV16: 15 VA, 0.25A max., AU18 / AZ18: 60 VA, 1A max.
- Contact output: Selectable NO / NC
- Process temp.: F: -40° to 176°, C: -40° to 80°
- Ambient temp.: F: -40° to 140°, C: -40° to 60°
- Installed height: 3.6” (9.1cm) above tank process mount
- Pressure: AV16: 25 psi (1.7 bar), AU18 / AZ18: 150 psi (10 bar)
- Enclosure rating: NEMA 4X (IP65)
- Enclosure mat.: PP, UL94VO
- Terminal strip: 6-pole, socket
- Conduit entrance: 1/2” NPT
- Wetted material: AV16-224X: PP, AU18-224X: PP, AU18-524X: PVDF, AZ18-424X: PP-Ryton®
- Process mount: -X243: 2” NPT, -X247: 1-1/2” G
- Classification: AV16 / AZ18: general purpose, AU18: intrinsically safe (see LU10 data sheet for details)
- Compliance: CE
