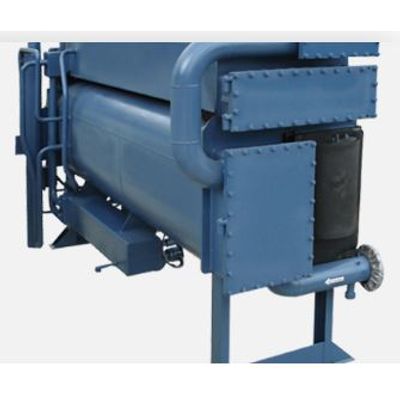

CPL CONCORDIA - Lithium Bromide Absorption Chiller
Lithium bromide absorption chiller converts thermal energy into cooling energy.
Most popular related searches
absorption chiller
energy efficiency
natural gas generator
energy saving
district heating
thermal energy
energy efficient chiller
energy measurement
thermal energy conversion
fuel saving
| Absorption chiller model | Cooling power? kWf | Thermal power?? kWt | Chilled water ?flow rate m3/h | Hot water ?flow rate?m3/h | Dimensions (LxDxH)?mm |
| TY158 (LTM 015) | 158 | 210 | 31.5 | 12 | 2110x1396x1965 |
| TY184 (LTM 020) | 184 | 245 | 36.8 | 14 | 2110x1396x1965 |
| TY218 (LTM 025) | 218 | 291 | 43.7 | 16.7 | 2235x1396x2035 |
| TY240 (LTM 030) | 240 | 320 | 48 | 18.3 | 2235x1396x2035 |
| TY259 (LTM 030) | 259 | 345 | 51.8 | 19.8 | 2430x1433x2080 |
| TY259 (LTM 030) | 274 | 365 | 54.8 | 20.9 | 2430x1433x2080 |
| TY274 (LTM 030) | 274 | 365 | 54.8 | 20.9 | 2430x1433x2080 |
| TY356 (LTM 040) | 356 | 474 | 71.1 | 27.2 | 2574x1499x2150 |
| TY428 (LTM 045) | 428 | 570 | 85.5 | 32.7 | 3567x1499x2150 |
| TY510 (LTM 050) | 510 | 680 | 102 | 39 | 3627x1686x2330 |
| TY538 (LTM 060) | 538 | 717 | 107.6 | 41.1 | 3627x1686x2330 |
| TY675 (LTM 070) | 675 | 900 | 135 | 51.6 | 4630x1686x2330 |
| TY1013 (LTM 090) | 1013 | 1350 | 202.5 | 77.4 | 4789x1929x2886 |
| TY1069 (LTM 100) | 1069 | 1425 | 213.8 | 81.7 | 4789x1929x2886 |
| TY1163 (LTM 110) | 1163 | 1550 | 232.5 | 88.9 | 4789x1929x2886 |
| TY1598 (LTM 140) | 1598 | 2130 | 319.5 | 122.1 | 5473x2073x3260 |
| TY1958 (LTM 150) | 1958 | 2610 | 391.5 | 149.6 | 6114x2317x2680 |
| TY2066 (LTM 150) | 2066 | 2754 | 413.1 | 157.9 | 6114x2317x2680 |
Co-generation and tri-generation systems offer several advantages:
- Energy saving thanks to lower fuel consumption
- Cost saving– the installation allows for 20 – 30% lower costs than conventional methods
- Environmental savings thanks to lower CO2 emissions
- Improved reliability and independence from conventional power supply methods
- The grid connection point allows for power to be drawn from and injected into (i.e. sold to) the grid, eliminating energy losses and shortening investment payoff time
- White Certificates – co-generation and tri-generation plants can benefit from Energy Efficiency Credits, more commonly known as White Certificates. These certificates are issued under an incentive scheme that promotes several types of energy efficiency measures
Heat generation for industrial processes:
- Electro-plating and tannery industry
- Food and pharmaceutical industry
- Drying and pasteurisation processes
- Chemical and petrochemical industries
Climate control in residential or commercial buildings:
- Hospitals and retirement homes
- Fitness centres and swimming pools
- Shopping centres
- Apartment buildings, offices and warehouses
- District heating
