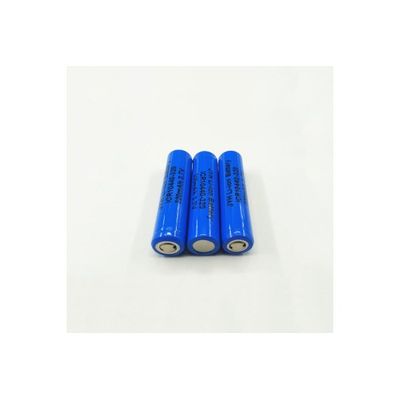

JYH - Model ICR10440-320 -Lithium-ion Battery (Li-ion)

Model Name : ICR10440-320. Nominal Voltage : 3.7V. Nominal Capacity : 320mAh. Typical Capacity : 335mAh after standard charge and standard discharge. Minimum Capacity : 305mAh after standard charge and standard discharge. Standard Charge : Constant current at 160mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤3.2mA. Fast Charge : Constant current at 320mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤3.2mA. Standard Discharge : 64mA to 2.75V. Fast Discharge : 320mA to 2.75V. Maximum Continuous Charge Current : 320mA. Maximum Continuous Discharge Current : 640mA. Operating Temperature : Charge 0c to 45c. Discharge -20c to 60c.
