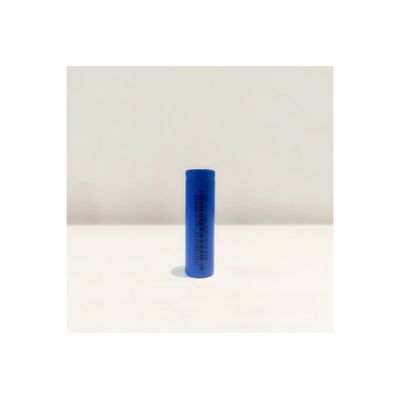

JYH - Model ICR14500-600 - Lithium-ion Battery (Li-ion)

Model Name : ICR14500-600. Nominal Voltage : 3.7V. Nominal Capacity : 600mAh. Typical Capacity : 650mAh after standard charge and standard discharge. Minimum Capacity : 600mAh after standard charge and standard discharge. Standard Charge : Constant current at 300mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤6 mA. Fast Charge : Constant current at 600mA charge to 4.20V, then constant voltage at 4.20V charge till current decline to ≤6mA. Standard Discharge : 120mA to 2.75V. Fast Discharge : 600mA to 2.75V. Maximum Continuous Charge Current : 600mA. Maximum Continuous Discharge Current : 1200mA. Operating Temperature : Charge 0c to 45c. Discharge -20c to 60c.
