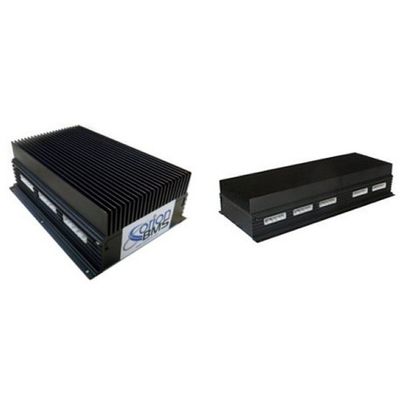

Orion BMS - Model Original - Lithium Ion Battery Management System

Capable of measuring up to 180 cells connected in series based on configuration depending on the enclosure size (smaller enclosure measures up to 108 cells). Configurations available in increments of 12 cells in series. Centralized design provides high EMI and noise immunity. Performs intelligent cell balancing (passive). Calculates state of charge (SOC). Uses professional automotive-grade locking connectors. Calculates discharge current limit (DCL) and charge current limit (CCL). Can measure cell voltages between 0.5v and 5.0v. Dual (x2) CANBUS 2.0B interfaces (fully programmable). OBD2 diagnostic protocol support.
