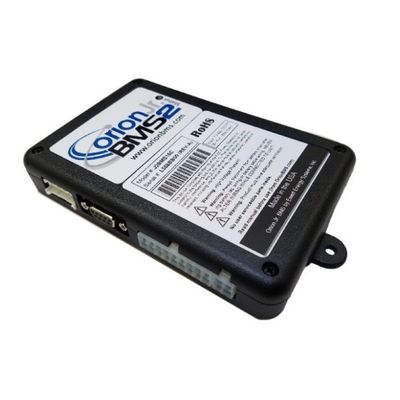

Orion BMS - Model Jr 2 -Lithium Ion Battery Management System
Supports from 1 to 16 cells in series. Designed for Lithium Ion battery packs up to 48V nominal (60V max). Centralized design provides high EMI and noise immunity. Performs intelligent cell balancing (passive). Calculates state of charge (SOC). Calculates discharge current limit (DCL) and charge current limit (CCL). Can measure cell voltages between 0.5v and 5.0v. Optional CANBUS 2.0B interface (fully programmable). OBD2 diagnostic protocol support.
Most popular related searches
lithium battery
lithium ion battery
wind energy storage
battery management system
lithium ion battery system
battery backup
energy storage
wind energy
battery management
power backup battery
Designed Use
- Designed for Lithium Ion battery packs up to 48V nominal (60V max)
- Individual cell voltage rating: 0.2v to 5v per cell tap
- Supports from 1 to 16 cells in series
- -40C to 80C operating temperature range
- Integrated low loss passive cell balancing to within 5mV
- Cell voltage resolution of 0.1mV
Applications
- Light mobile applications (scooters, golf carts, etc.)
- Solar & wind energy storage
- Uninterruptible power supply
- Battery backup
Basic Functions
- Over-voltage and under-voltage protection
- Over-current protection
- Temperature protection
- Intelligent cell balancing
- State of charge monitoring
- State of health monitoring
Additional Functions
- Data logging capabilities
- Stored diagnostic information
- Programmable interfaces
- Current limit calculations (intelligent current limiting)
- Stored battery usage statistics including histogram data
Display Options
- Interfaces with third party smartphone software (CAN version only)
- Optional basic state of charge display
- Optional data logging display
- Optional remote monitoring via Orion Connect
