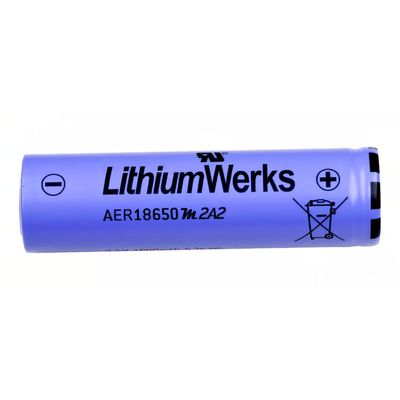

Lithium Werks - Model 18650 -Lithium-Ion Energy Cells
Lithium Werks` 18650 lithium-ion cells are designed to deliver substantial power and energy, leveraging lithium iron phosphate (LiFePO4) technology. This chemistry offers remarkable thermal stability, rapid charging capabilities, and a consistent power output, effectively minimizing capacity loss over the product`s lifespan. The cells are characterized by their inherent safety and stability across a wide range of temperatures and conditions, making them suitable for diverse applications. Whether used in industrial, medical, military, or consumer electronics, these cells provide outstanding cycle life and stable float reliability. The multi-layered protection mechanisms at the chemical, cell, and system levels ensure greater safety and abuse tolerance compared to traditional metal oxide lithium-ion chemistries. Their superior total cost of ownership underscores their value in long-term implementations.
Lithium Werks’ 18650 cells are capable of delivering high power and high energy due to their use of lithium iron phosphate battery technology.
Based on lithium iron phosphate chemistry (LiFePO4), the cells are inherently safe over a wide range of temperatures and conditions. Whether the application requires outstanding cycle life or stable float reliability, the Lithium Werks’ 18650 cells are suitable for a wide variety of industrial, medical, military, portable devices, energy storage, and consumer electronics applications.
Our lithium iron phosphate chemistry (LiFePO4) provides the foundation for safe systems while meeting the most demanding customer requirements. Multiple layers of protection are employed at the chemistry, cell and system level to achieve an energy storage solution with superior safety and abuse tolerance compared to metal oxide lithium-ion chemistries.
- Energy LFP cells can be fully charged to 100% without causing accelerated battery degradation.
- The phosphorus-oxygen bond in LFP cathode greatly reduces the release of oxygen, which reduces the opportunity to propagate into a thermal runaway, making LFP much safer than metal oxide cells.
- LFP cathode is made from earth abundant materials making this technology more ecofriendly and price stable.
- LFP Energy cylindrical cells have higher gravimetric and volumetric energy densities, are chosen for longer duration applications, and have excellent safety characteristics i.e. long life, high cycle life, and improved total cost of ownership.
- LFP Energy cells are designed for high energy, safety, long calendar life & high cycle life applications. They generally offer the best total cost of ownership.
- Voltage: 3.2 V
- Capacity @ C/5 Typical (Min): 1.8 Ah (1.7)
- Energy: 5.76 Wh
- Specific Energy: 133 Wh/kg
- Energy Density: 330 Wh/L
- Impedance (1kHz ACIR): < 20 mΩ
- Cycle Life at 0.5C/0.5C, 100% DOD: > 2000 cycles
- Max. Continuous Discharge Current: 5.4 A (3C)
- Max. Pulse Discharge Current (10s): 18 A (10C)
- Minimum Voltage: 2.0 V
- Temperature: -20°C to 60°C
- Recommended Charge Voltage: 3.6 V
- Recommended Charge Current: ≤ 0.9 A (C/2)
- Max Continuous Current, >10 ºC: 2.7 A (1.5C)
- Terminate Charge @ 3.6 V: < 36 mA
- Float Voltage: 3.5 V
- Temperature: 0 ºC to 60 ºC
- Storage Temperature: -30 ºC to 70 ºC
- Diameter: Ø18.5 +/- 0.1 mm
- Length: 64.95 +/- 0.2 mm
- Mass: 43.4 +/- 1.0 g
