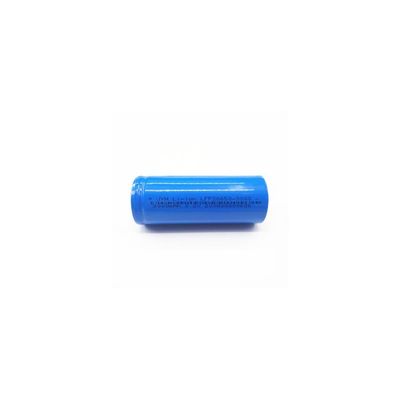

JYH - Model LFP26650-3000 - Lithium Iron Phosphate Battery

LiFePO4 has a good performance in high temperature environment, when the temperature arrives at 60?, the discharge capacity increases almost 10%, while cycle life performance better than at room temperature.

Most popular related searches

lithium-iron phosphate battery

lithium iron phosphate

APPLICATION: Emergency Light, ELU, Solar Light, Personal Care, Medical Devices, Roof, Backup Power..

Model Name : LFP26650-3000
Nominal Voltage : 3.2V
Nominal Capacity : 3000mAh
Typical Capacity : 3150mAh after standard charge and standard discharge
Minimum Capacity : 2900mAh after standard charge and standard discharge
Standard Charge : Constant current at 1500mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤30mA
Fast Charge : Constant current at 3000mA charge to 3.65V, then constant voltage at 3.65V charge till current decline to ≤30mA
Standard Discharge : 600mA to 2.0V
Fast Discharge : 3000mA to 2.0V
Maximum Continuous Charge Current : 3000mA
Maximum Continuous Discharge Current : 9000mA
Operating Temperature : Charge 0? to 45?
Discharge -20? to 60?
Storage Temperature :

<1 year -20? to 25?
<3 months -20? to 40?
<30days -20? to 50?

Typical Weight : 78g
