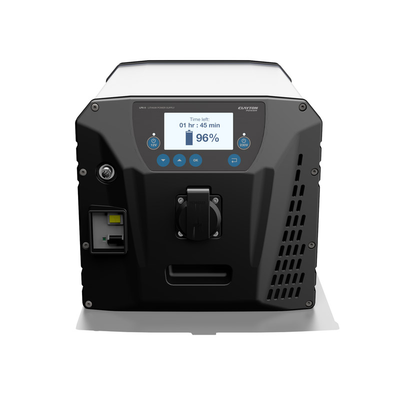

Clayton - Model LPS II 2000- 1 kWh -Lithium Power Supply System (LPS)

FromClayton Power ApS

SHARE

An LPS II 2000 has a built-in: 1 kWh Lithium Ion Battery, 2000 W - 230 V/50 Hz Sine Wave Inverter, Booster (Charging from alternator), Solar regulator (Charging from solar panels), Intelligent Charger (Charging from mains), relays, display, start aid function etc. The powerful and compact LPS provides power to your 230 VAC and 12 VDC appliances without the complexities of additional equipment.

Most popular related searches

lithium battery

lithium ion battery

sine wave inverter

power supply system

battery capacity

battery chemistry

LiFePO4 battery

solar charge regulator

SKU No.: CL2205
Battery type: Li-Ion 12V – 100Ah
Battery chemistry: LiFePO4
Battery capacity: 100Ah (1320Wh)
Battery available capacity: 80Ah (1050Wh)
AC Input voltage: 207 VAC – 253 VAC
AC input frequency: 45 Hz – 65 Hz
AC Input power (Charge power): 720 W
AC Output voltage +- 10%: 230 VAC pure sine wave
AC Output frequency: 50 Hz
AC output power – Continuously (ambient temp): 1500 W
AC output power - 10 min.: 2000 W
AC output power - Peak: 3000 W
AC output power - AC In connected: 2300 W
AC output efficiency (1000W): 94%
DC Input voltage: 11,5 - 32 VDC
DC input current: 45 A
DC input current with 1 external converter (efficiency): 90 A
DC output voltage: 10-14,4 VDC
DC output charge current – Continuously 90 A
DC output discharge current – Continuously 180 A
DC output discharge current – 1 min.: 270 A
Solar input charging power (max.): 400W
Solar input voltage : 15 – 50 VDC
Solar input charging current (max.): 15 A
Input signals (5): C1, C2, M12 x 3
Output signals (4): C2 & M12 x 3
Self-discharge rate per month: < 5%
Self consumption - Operating mode, Only DC Output active: < 1 W
Self consumption - Operating mode, inverter and DC Output in with > 50W: 20 W
Connection 230VAC: Neutrik and Schuko
Connection C1 / C2 : M4
Connection DC input: M8
Connection DC output: M8
Cooling: Forced air (fan)
Operating temperature (output will be limited below 0°C and ab): -20°C~50°C
IP rating: IP21
Product weight: 22,5 kg
Product dimensions (HxWxL): 256x277x409mm
Jumpstart: 40 A / 5 min
