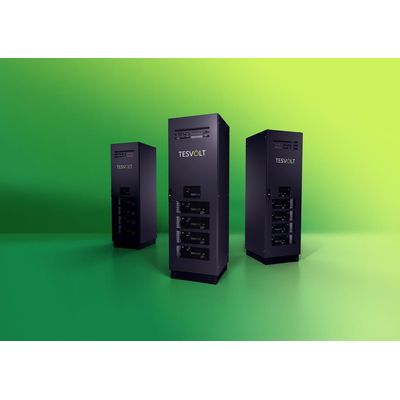

TESVOLT - Model TS 48 V - Lithium Storage System
Can be flexibly expanded in 4.8 kWh increments Three different rack sizes Optimised for use with the SMA Sunny Island Flexible configuration and expansion possible, even years down the road Built to last 30 years or 8,000 full cycles 1C charging speed Utmost cell technology safety.

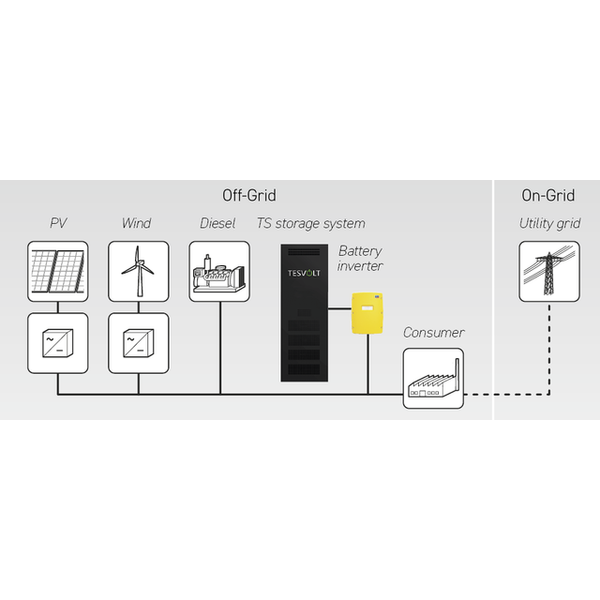

All TS lithium storage systems are suitable for both off-grid and on-grid use and can be flexibly combined with any type of energy generator such as photovoltaic, bioenergy, wind power or diesel generators.
Use more of the power you generate and cut your electricity costs
The storage system immediately takes over the power supply in the event of a power outage.
TESVOLT solutions have the option of making the utility grid available while counterbalancing production and consumption peaks. This keeps diesel generators operating as efficiently as possible to minimise diesel costs.
Create your own power grid independently of energy suppliers, for example by combining a photovoltaic installation and TESVOLT storage solution.
Time-dependent use of functions.
Smart interconnection of charging station and central controls via the TESVOLT Energy Manager. This allows charging processes to be digitally recorded and controlled.
Supplying a small power grid with or without connection to a public utility grid; here the battery makes part of the grid available, for example when only a limited grid connection is available.
Depending on the weather forecast, curtailment losses from photovoltaic installations are avoided and self-consumption is optimised.
Remote control of active and reactive power.
Fulfils the normative guidelines (Germany) stipulating that no power can be fed in to the utility grid.
Gives access to direct marketers for the purposes of marketing electricity from renewable energy sources.
The TS 48 V lithium storage system offers outstanding flexibility and can be optimally adjusted to suit any application. Its cutting-edge prismatic lithium battery cells from Samsung SDI and innovative technology like the Active Battery Optimizer ensure outstanding efficiency and performance.
The system is designed to last 8,000 cycles or a lifespan of 30 years, guaranteeing excellent cost efficiency. Its modular construction makes exchanging individual battery modules a breeze, and the capacity can be expanded even years later.
With its continuous power of 1C, the TS 48 V storage system can charge and discharge in next to no time, making it ideal for professional use in commercial applications, agriculture and industry.
Current Product Innovations
- Time of use
- APU with SD memory card (optional)
- ABO 2.0 with rack balancing cables that only plug in one way, and break-resistant ribbon cables
