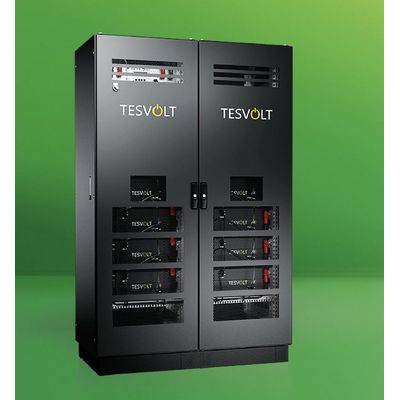

TESVOLT - Model TS HV 70 - Lithium Storage System
Particularly low cost per kilowatt-hour stored (approx. EUR 0.08). Battery voltage from 575 to 1,000 volts. Optimised for use with the 3-phase SMA Tripower Storage 60. Battery modules can be exchanged, even years down the road. Built to last 30 years or 8,000 full cycles. 1C charging speed. Utmost cell technology safety.
The TS HV 70 storage system is not only built for efficiency, it is also one of the most advanced and powerful storage systems on the market. Its cutting-edge prismatic lithium battery cells from Samsung SDI and innovative technology like the Active Battery Optimizer ensure outstanding performance.
The system is designed to last 8,000 cycles or a 30-year lifespan, guaranteeing excellent cost efficiency. With its continuous power of 1C, the TS HV 70 storage system can charge and discharge in next to no time, making it ideal for professional use in commercial applications, agriculture and industry.
Current Product Innovations
- Multi-use: peak load shaving and self-consumption optimization
The TS HV 70 storage system is optimised for particularly demanding operations in commercial enterprises with storage requirements in excess of 30 kilowatt hours. The investment costs for the system and the price per kWh stored remain low thanks to the system’s exceptional cost-efficiency.
Peak Shaving
Shave consumption peaks and minimise demand rate costs.
Self-Consumption Optimisation
Use more energy from renewable sources and minimise feed-in.
PV-Diesel-Hybrid optimisation
TESVOLT solutions have the option of making the utility grid available while counterbalancing production and consumption peaks. This keeps diesel generators operating as efficiently as possible to minimise diesel costs.
Multi-Use
Simultaneous use of two applications: Either LSK & EVO, or LSK & Time of Use, or EVO and Time of Use
Forecast-Based Battery Charging
Depending on the weather forecast, curtailment losses from photovoltaic installations are avoided and self-consumption is optimised.
Direct Marketer Interface
Gives access to direct marketers for the purposes of marketing electricity from renewable energy sources.
Ancillary Services
Remote control of active and reactive power.
Time of Use
Gives access to direct marketers for the purposes of marketing electricity from renewable energy sources.
SYSTEM SETUP
TESVOLT TS HV 70 storage systems are optimised for use with 3-phase SMA Sunny Tripower Storage 60 battery inverters and tailored to the requirements of industry and trade, paving the way for storage solutions in the megawatt range.
Thanks to the energy management system integrated in the Inverter Manager and the TS HV 70’s high C-rate, it allows for a wide range of grid system services. This system opens up new economic opportunities for industry and trade.
CONNECTION OPTIONS
Up to 1,500 kW and 6,080 kWh
*14 (67 kWh) and 16 (76 kWh) modules can be connected in series*
