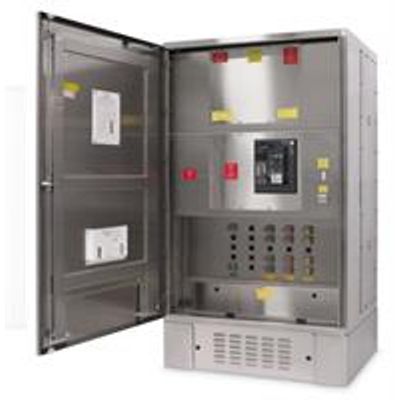

Trystar - Load Bank Docking Station
Trystar Loadbank Docking Stations are designed to easily and safely connect a load bank to any permanent generator and/or UPS system for annual maintenance. Without this quick camlok connection, the service company can spend hours hardwiring cable from the load bank to a generator. In life safety situations, the permanent generator may have to be tested up to 4 times annually; having to hard wire each time adds a ton of cost to an annual service agreement. In situations like this, the load bank connection cabinet pays for itself after one year.
Amperage Range: 100A-4000A
Voltage Options: 120/240V, 120/240V Delta, 208Y/120V, 480V, 480Y/277V, 600V
Features: UL 50 Listed, ETL/C-ETL 1008 Listed, NEMA 3R or NEMA 4X, all aluminum construction or all stainless steel construction, phase rotation monitor, silver plated copper busbar, protective caps on all panel mounts to prevent accidental contact, padlockable swinging front door, Trystar rake theft reduction system, bottom hinged door will not open unless main door has been opened, custom powder coat, custom UV-printed graphics, made in USA
Available Options: Variety of breakers, Kirk Key interlock, wall-mount, flush-mount or padmount enclosure, two-wire auto start, battery charger duplex receptacle, battery charger GFCI receptacle, block heater receptacle, 50A twist-lock receptacle, 100% ground, SCADA terminal port, extra-depth for additional conduit access, listed monitoring device, strip heater & thermostat, surge protection device, load dump receptacle, utility light, alarm, custom lug sizing, and more
