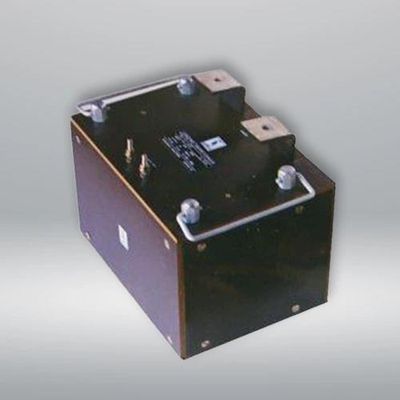

Sudharsan - Model Type SI/LTR-5/10/15 - Loading Transformer (Wound Secondary)
A Loading Transformer with the designation Type SI/LTR-5/10/15 is a specialized transformer designed for providing adjustable loads to electrical circuits during testing, calibration, and performance evaluation. These transformers typically offer three different load settings: 5, 10, and 15, which represent the available load levels that can be applied to the circuits under test.
- Easily transportable with lifting handles
- Enclosed in 5mm thick Bakelite Hylam enclosure
- Wound secondary with brought out Copper Bus bars as output terminals
- AC 230 V input for range up to LTR 10 and LTR – 15
- Short time rating: 60 Secs
- 290 x 260 x 150 mm: Weight: 16 Kg for LTR – 5
- 290 x 310 x 220 mm: Weight: 29 Kg for LTR – 10
- Site testing of C.T. Ratios
- Input : 230V, 50Hz
- Output :
- 0 – 5V, 1000 Amp max. at TLS. for Type LTR 5
- 0 – 5V, 2000 Amp max. at TLS.. for Type LTR 10
- 0 – 5V, 2500 Amp max. at TLS for Type LTR 15
