Data Logger - LogCom/FlashCom

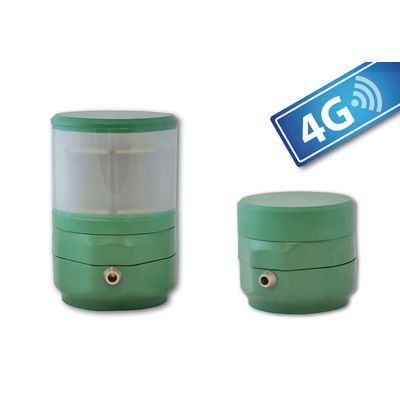

Robust, compact multi-channel data logger with an integrated cellular modem // Impact-resistant aluminum housing with threaded connector, optimised for level tubes of 4" diameter// Either with an external battery or integrated solar module (type FlashCom) // LCD with three multi-function buttons to display current measured values and system status // Transfer Options: Data retrieval via mobile network, FTP Push, TCP push, SMS push, SMS Alarms // Can be connection to DS(T) 22, MPS-PTEC/D8/K16 and other external sensorsEfficient:
Low energy consumption through intelligent power management = higher battery life = lower maintenance intervals = lower operating costs.
Low maintenance:
Power supply with commercial 1.5 V batteries (LogCom) or as an autonomous system with integrated solar cells and an internal battery (FlashCom)
Easy to install:
The LogCom/FlashCom is equipped with a 4" threaded connector. Just as the SEBA cap, the measurement system can be easily mounted and fixed onto the existing sounding pipe. For larger diameter pipes up to 6 " appropriate adapters (reductions) are available.
Variable:
Depending on the measurement task, up to 32 logical channels can be managed in the logger. Thus, it is possible, for example, to connect 16 digital SEBA-pressure / temperature DS(T) 22 sensors, or three MPS-D8 multiparameter sensors using an internal RS485 interface. In addition, with the help of an external A/D converter, up to eight analog sensors can be connected.
Smart:
Upon reaching predefined event thresholds, e.g. in the case of flooding, the LogCom/FlashCom automatically shortens both the measurement and the transmission interval. Regardless, an alarm SMS can be sent to up to eight recipients.
User-friendly:
Two clever APPs are available for configuration and data read-out of LogCom/FlashCom. Operating software for beginners SEBA Config (Windows) a comfortable user interface (Wizard) for various routine tasks. SEBA SEBA ConfigAPP (Android, iOS) combined the BlueCon Bluetooth module makes to communication via Bluetooth very convenient with either a smartphone or tablet and the data logger.
Last but not least:
With the password-protected web portal SEBA Hydrocenter data is not only safe, but also accessible at any time on the road or from the office. Alternatively, there is also the possibility of simple data provision on a secure SEBA FTP server.
